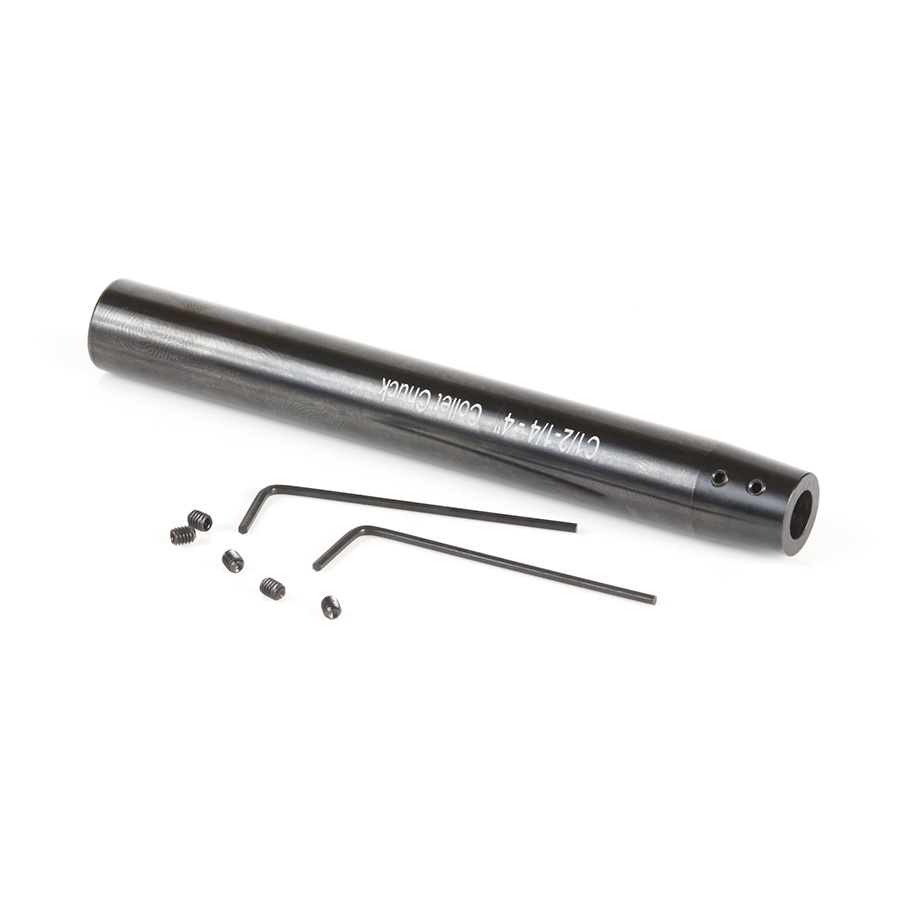

TE-134 CNC Narrow Reach Tool Holder Extension 1/2 Shank, 4 Inch Length, 1/4 Inch Inner Dia.


(d) Shank1/2
Overall Length (L)4
Replacement screw67215 (2)
Inner Diameter (ID)1/4

CNC Narrow Reach Tool Holder Extension

Please or

Have the extra reach you need at economical prices with this CNC tool holder extender.

Side Lock with Key

  • For use with high precision spring collets
  • Precision ground for best Total Indicator Runout (TIR)
  • Shank to pocket runout 0.0004" (0.01mm)
  • Black oxide finish for corrosion protection
  • Max RPM = 10,000 for safe operation
Replacement Screw (2)
