47094 Carbide Tipped Down-Shear Multi Trimmer 1/2 Dia x 5/8 x 1/4 Inch Shank with Ball Bearings

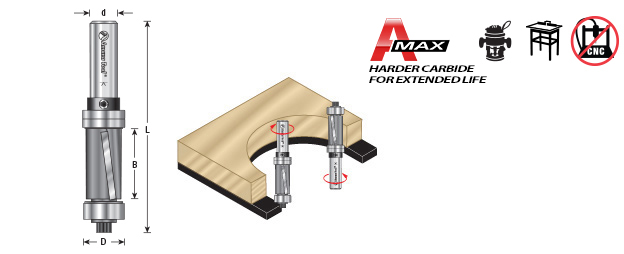

Diameter (D)1/2
Cutting Height (B)5/8
Shank (d)1/4
Overall Length (L)2-19/32
Replacement Bearing(U)47701 (L)47706

Down-Shear Multi Trimmer Router Bits

Please or

This adaptable double bearing guided cutter has down-shear design, which ensures a clean cut even in difficult materials. The two-bearing design allows the cutter to be used with the template mounted on either side of the work and, consequently, it is possible to cut from either direction using only one template and without moving the template to the other side of the work piece.

This is especially useful when cutting curves which run both with and against the grain.

AMAX Extended Life Features:

  • 200% longer life time even when working with abrasive materials
  • Superior geometric design
  • Advanced grinding technology that improves the carbides' resistance to wear
  • Super clean cuts
Tool No.Bearing(s)ScrewFlat WasherCollar w/Set Screw
47706 (L) & 47701 (U)
