49342 Binding/Rabbeting 15mm (19/32) Dia x 11.5mm (7/16) x 1/4 Inch Shank Router Bit Set

#49342

Specification
Diameter (D)15mm (19/32)
Cutting Height (B)11.5mm (7/16)
Shank (d)1/4
Overall Length (L)2-1/8
Flutes3
C1.0mm (3/64) - 3.0mm (1/8)

Binding/Rabbeting Router Bit Sets

Please or

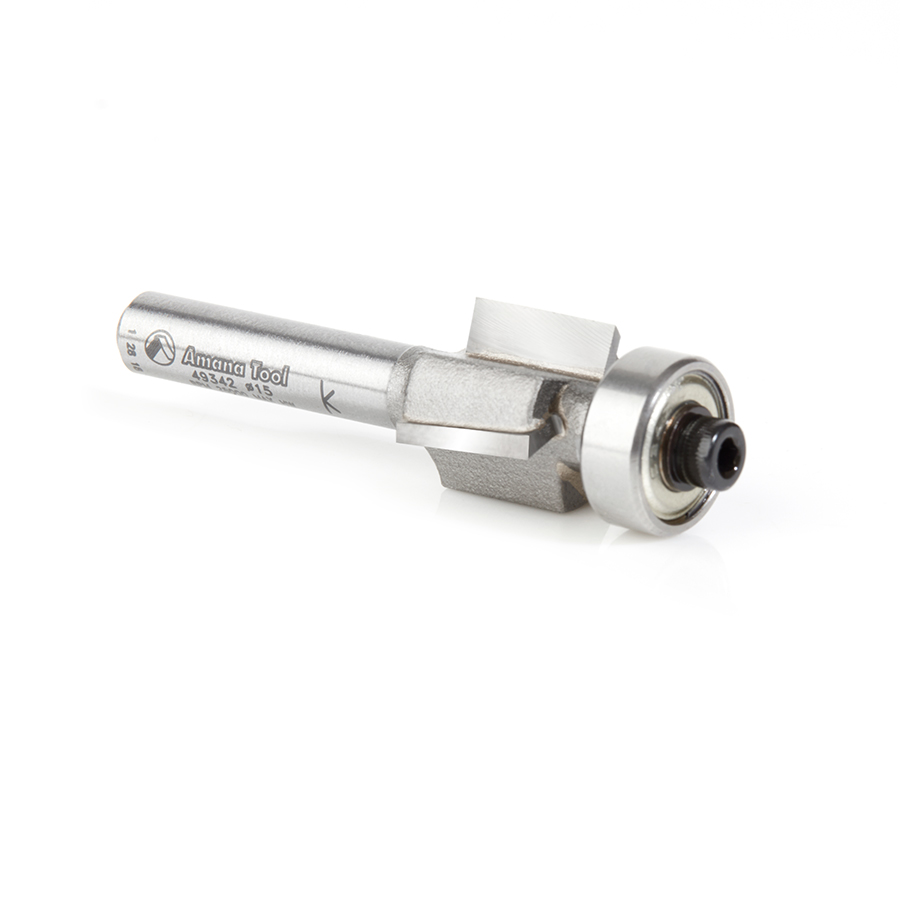

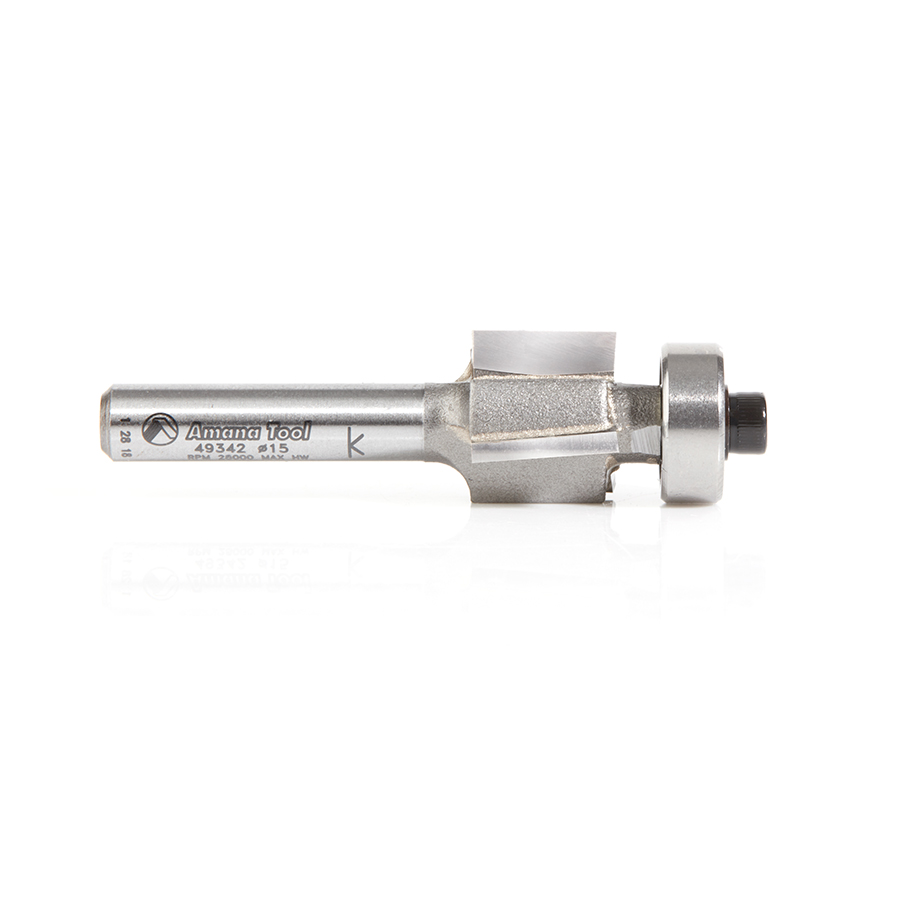

Carbide Tipped - Down shear angle - 3 Flute with ball bearing guide.

Special set designed for Luthier. This set includes five different bearings that will give five rabbet sizes (Ledge cut).

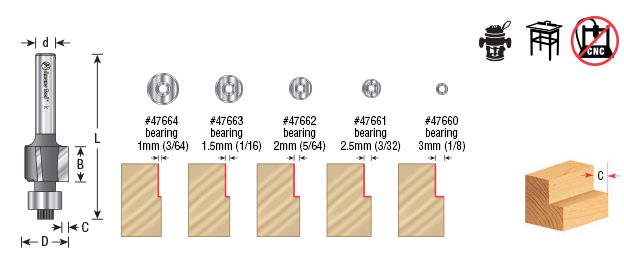

Included Ball Bearings

C (Ledge cut)                Ball Bearing

1mm (3/64) Rabbet      47664

1.5mm (1/16) Rabbet   47663

2mm (5/64) Rabbet      47662

2.5mm (3/32) Rabbet   47661

3mm (1/8) Rabbet        47660

Tool No.Replacement Bearing 9mmReplacement Bearing 10mmReplacement Bearing 11mmReplacement Bearing 12mmReplacement Bearing 13mm
