Binding/Rabbeting Router Bit Sets

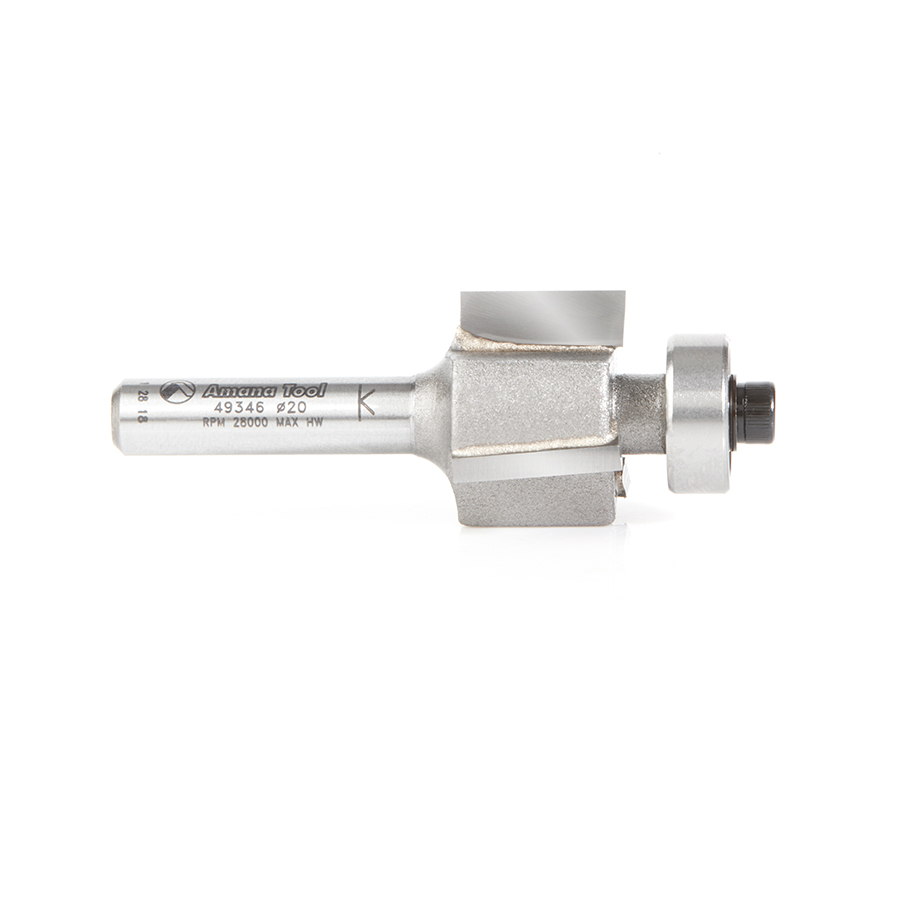

49346 Binding/Rabbeting 20mm (51/64) Dia x 13.5mm (17/32) x 1/4 Inch Shank Router Bit Set
#49346

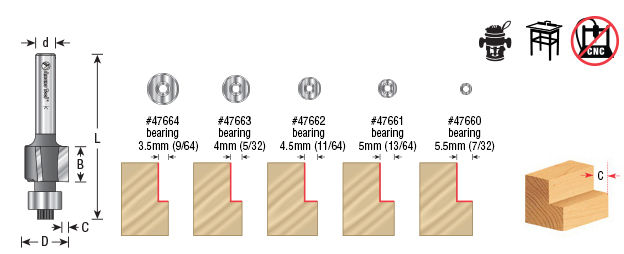

| Diameter (D) | 20mm (51/64) |
|---|---|
| Cutting Height (B) | 13.5mm (17/32) |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-1/8 |
| Flutes | 3 |
| C | 3.5mm (9/64) - 5.5mm (7/32) |
Carbide Tipped - Down shear angle - 3 Flute with ball bearing guide.

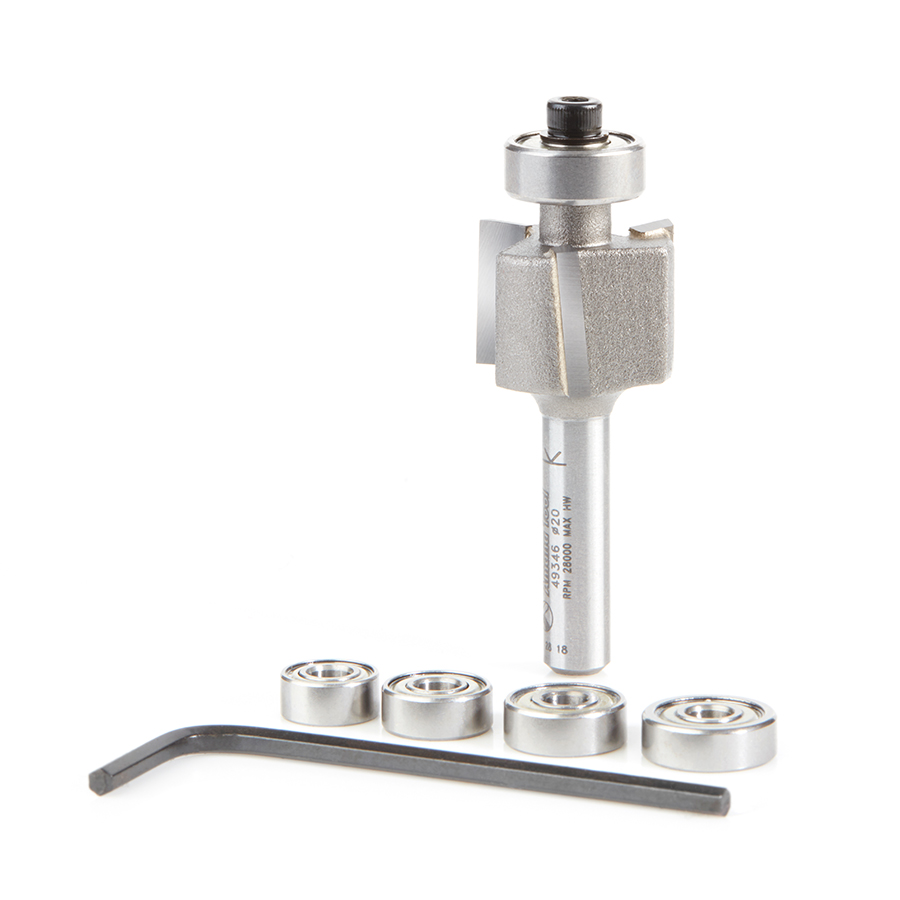

Special set designed for Luthier. This set includes five different bearings that will give five rabbet sizes (Ledge cut).
Included Ball Bearings
C (Ledge cut) Ball Bearing
3.5mm (9/64) Rabbet 47664
4mm (5/32) Rabbet 47663
4.5mm (11/64) Rabbet 47662
5mm (13/64) Rabbet 47661
5.5mm (7/32) Rabbet 47660
