Beading Router Bits

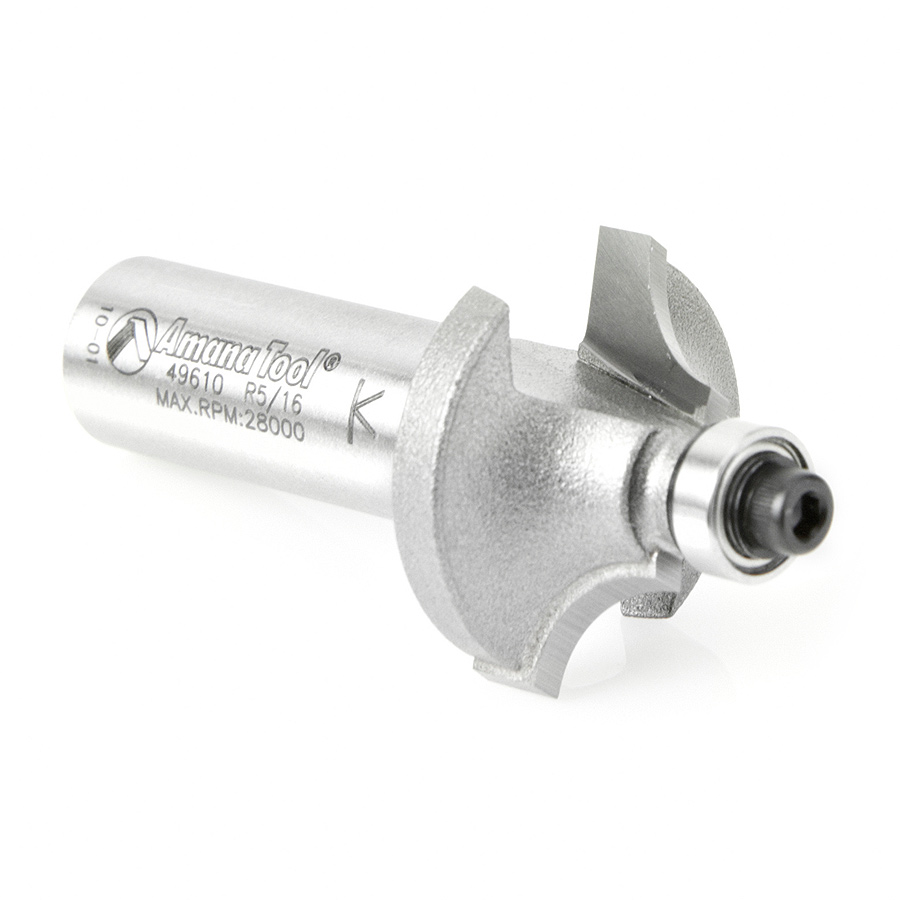

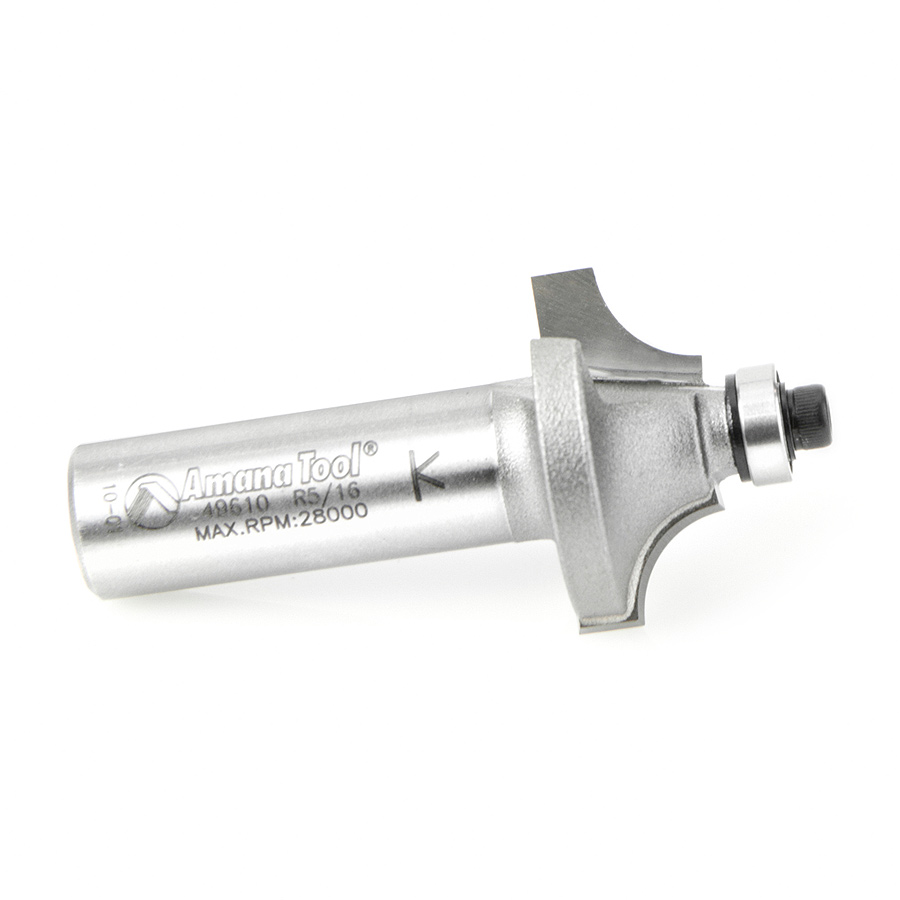

49610 Carbide Tipped Beading 5/16 Radius x 1-1/8 Dia x 1/2 x 1/2 Inch Shank
#49610
| Diameter (D) | 1-1/8 |
|---|---|
| D1 | 3/8 |
| Radius (R) | 5/16 |
| Cutting Height (B) | 1/2 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-7/16 |
| Replacement Bearing | 47702 |
| Flutes | 2 |
Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (& vice versa).
