Variable Double Chamfer Assembly

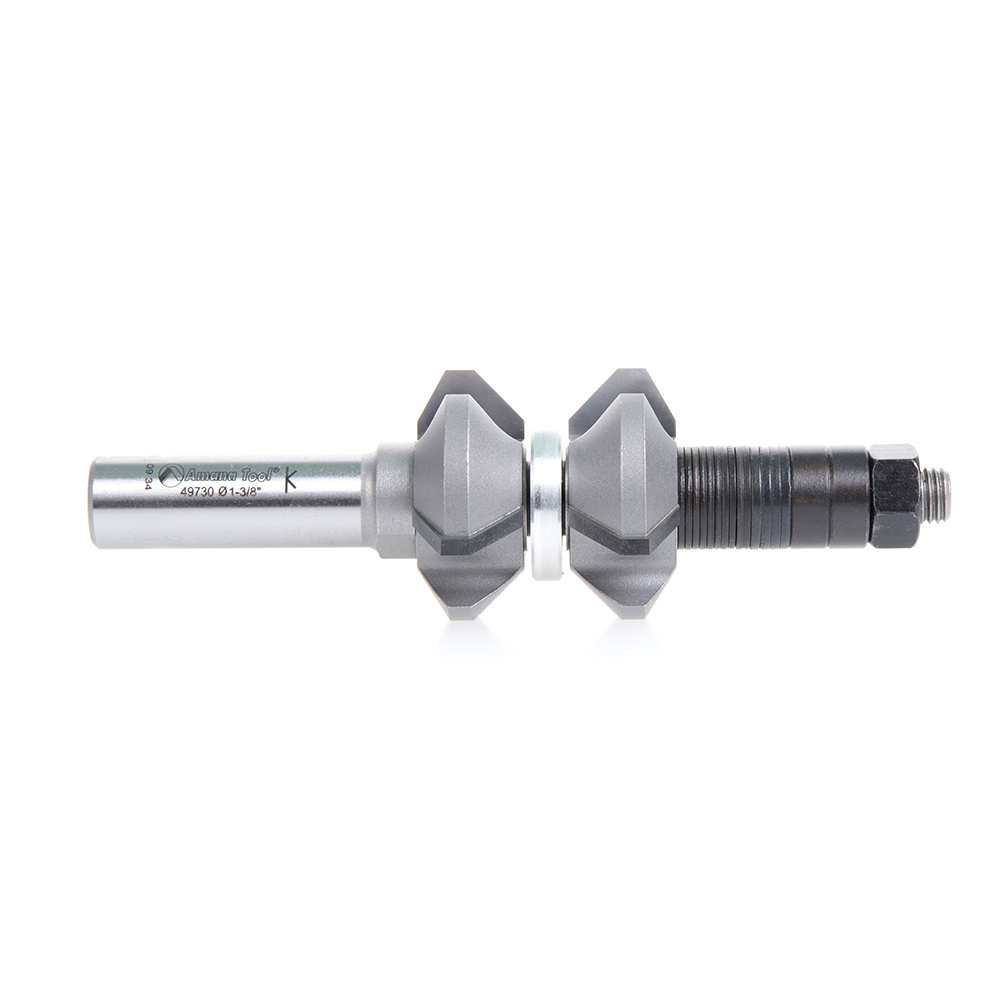

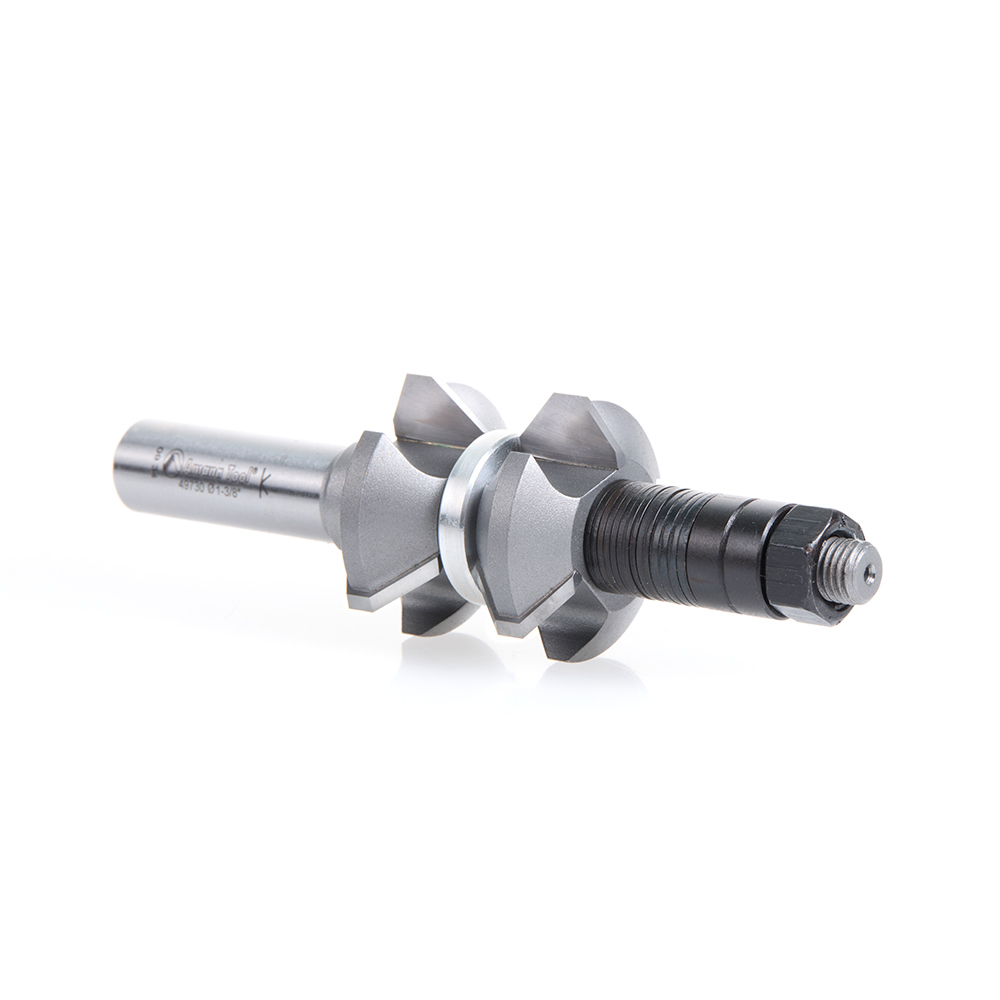

49730 Carbide Tipped Variable Double Chamfer 30 Degree Top x 45 Degree Bottom x 1-3/8 Dia x 9/16 x 1/2 Inch Shank with Center Ball Bearing
#49730
| a1° | 30° |
|---|---|
| Diameter (D) | 1-3/8 |
| B1 | 9/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 4-1/4 |
| a2° | 45° |
| # Wings | 3 |
Chamfer both corners of an edge in one pass with this assembly. Switch from 30° or 45° chamfers by switching cutter positions on the arbor. Interchangeable spacers adjust assembly to accommodate different stock thicknesses. The assembly includes the arbor, a pair of multi-angle cutters, pilot bearing, spacers and shims. Replacement parts are available separately. For best results use in a router table.
Excellent for cutting:
- Acrylic
- Laminate
- MDF/HDF
- Melamine
- Wood
- Plywood
