Aluminum & Plastic Bevel Trim Router Bits
51434 Carbide Tipped Aluminum & Plastic Cutting Bevel Trim 45 Degree x 31/32 Dia x 1/4 x 1/4 Inch Shank
#51434

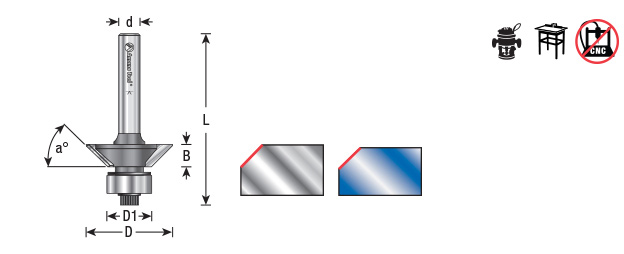

| Angle (a°) | 45° |
|---|---|
| Diameter (D) | 31/32 |
| D1 | 1/2 |
| Cutting Height (B) | 1/4 |
| Shank (d) | 1/4 |
| Overall Length (L) | 1-15/16 |
| Max RPM | 35,000 |
| Replacement Bearing | 47706 |
| Flutes | 2 |
This steel bodied carbide tipped bit is for bevel trimming in aluminum and plastic with a standard router. The solid construction reduces vibration for the smoothest cut possible with a two flute bit.
Note: Start at 12,000 RPM and increase the speed to get a better surface if it is necessary.
Note: Start at 12,000 RPM and increase the speed to get a better surface if it is necessary.
