Bullnose Router Bits

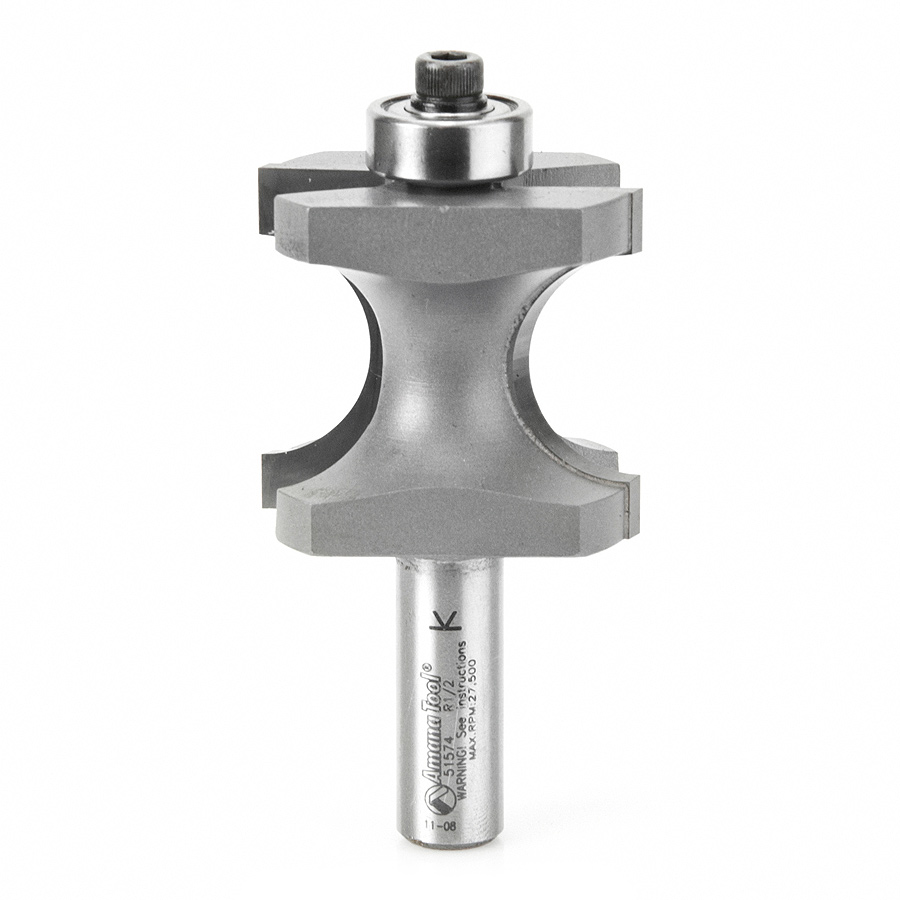

51574 Carbide Tipped Bullnose 1/2 Radius x 1-13/16 Dia x 1-9/32 x 1/2 Inch Shank

#51574

Specification222
Diameter (D) 1-13/16
Radius (R) 1/2
Cutting Height (B) 1-19/32
Shank (d) 1/2
Overall Length (L) 3-1/2
Replacement Bearing 47714
M 1
Flutes 2

Shape the full edge of a workpiece with a bullnose radius bit. Ideal for shaping stair treads, window sills, table and counter edges, shelves, and making moldings. The "nose diameter" (M) is the thickness of stock that can be nosed, i.e., given a full 180-degree roundover. Flats at top and bottom of the cutting edges create fillets on stock thicker than the nose diameter. Must be used with an edge guide on handheld routers or the fence on a router table. ‘M’ denotes thickness of material on which a full 180° roundover can be accomplished.

Maximum RPM 18,000.

Tool No.Bearing(s)ScrewDust Shield
