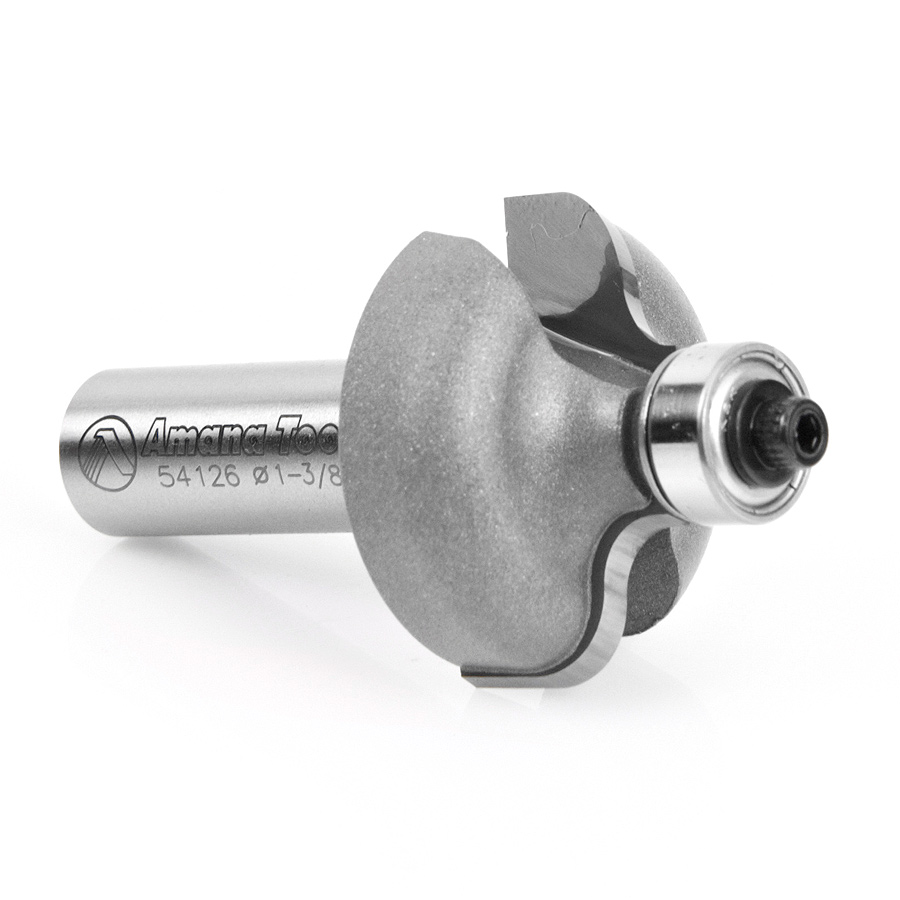

54126 Carbide Tipped Ogee 1/4 x 3/16 Radius x 1-3/8 Dia x 11/16 x 1/4 Inch Shank

#54126

Specification
Diameter (D)1-3/8
Radius (R)1/4
Cutting Height (B)11/16
Shank (d)1/2
Overall Length (L)2-5/8
Replacement Bearing47706
R13/16
Flutes2
Ogee Router Bits

Please or

The ogee is one of the basic shapes used in moldings and decorative profiles. An S-shaped curve, it is convex at the top fairing down into a concave (shown inverted). The ogee bit is characterized by the concave shape coming off the pilot bearing. Using the optional 3/8" bearing produces a profile with a fillet at the convex end of the curve. Use in a handheld or table-mounted router.
Tool No.Bearing(s)ScrewDust ShieldFlat Washer
