Classical Molding Router Bits

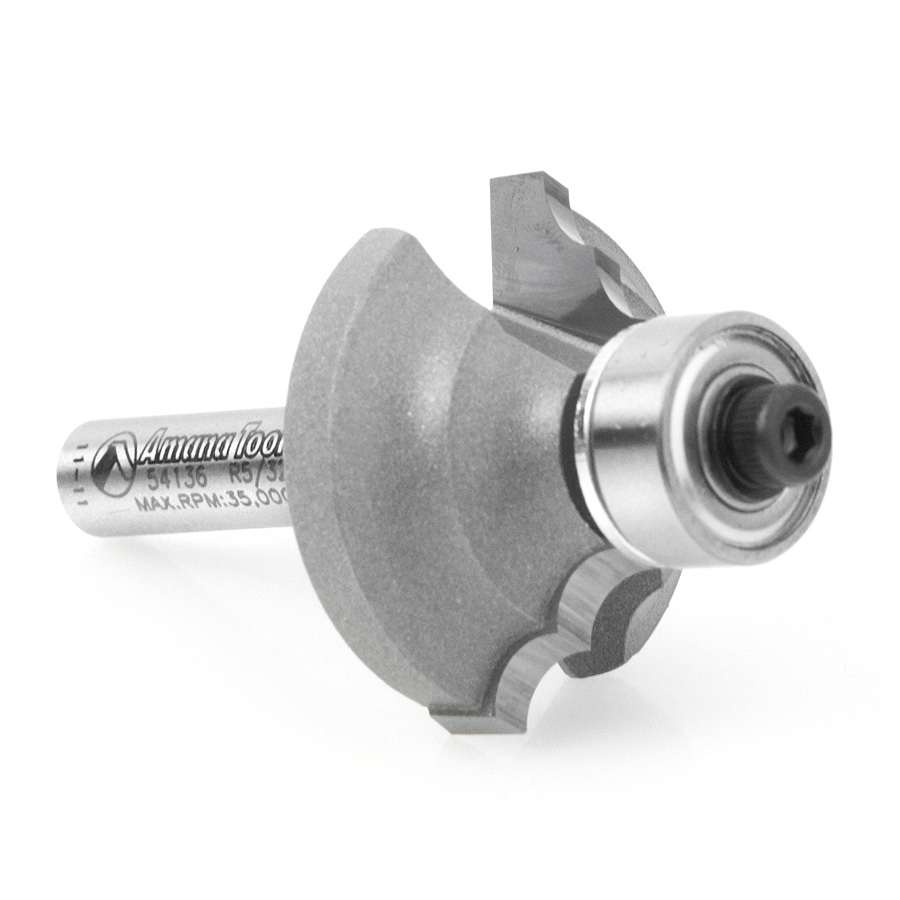

54136 Carbide Tipped Classical Molding 5/32 Radius x 1-1/8 Dia x 1/2 x 1/4 Inch Shank
#54136
Diameter (D) | 1-1/8 |
---|---|
Radius (R) | 5/32 |
Cutting Height (B) | 1/2 |
Shank (d) | 1/4 |
Overall Length (L) | 2 |
Replacement Bearing | 47706 |
Flutes | 2 |
A double quarter-round profile is produced by this tool. The depth-of-cut setting determines whether or not a fillet is formed at the top. Switching from the standard pilot bearing to the optional 3/8" bearing introduces a fillet at the bottom of the profile. Use in a handheld or table-mounted router.
