Classical Molding Router Bits

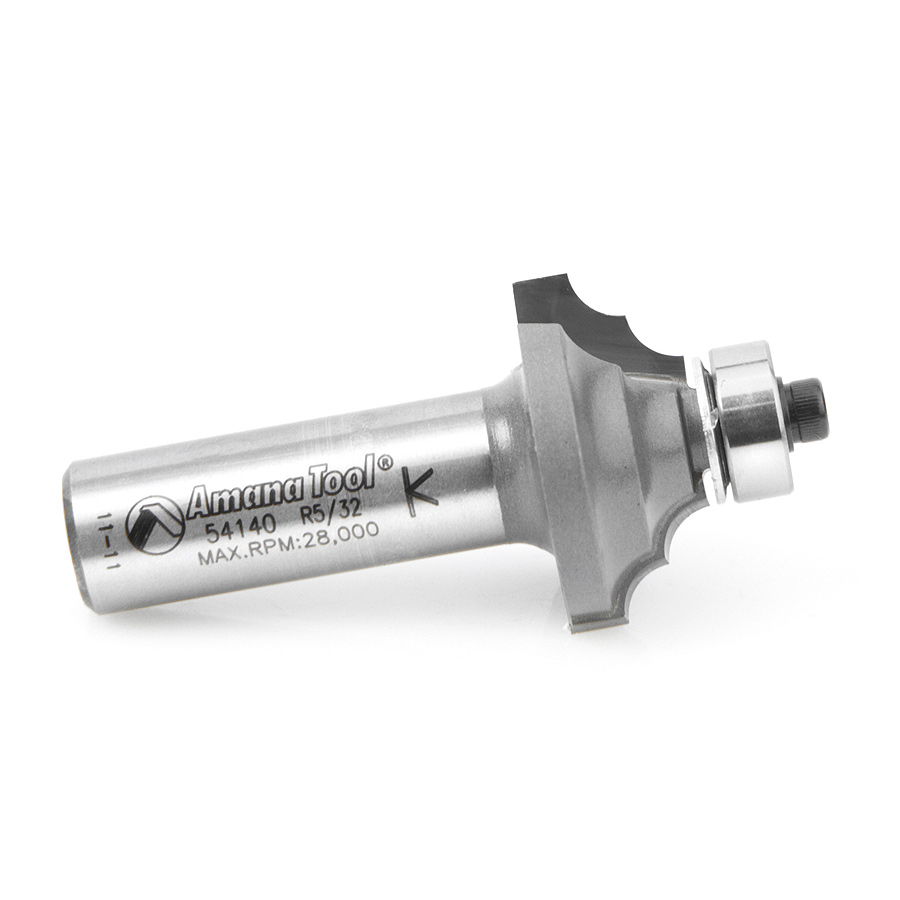

54140 Carbide Tipped Classical Molding 5/32 Radius x 1-1/8 Dia x 1/2 x 1/2 Inch Shank

#54140

Specification
Diameter (D)1-1/8
Radius (R)5/32
Cutting Height (B)1/2
Shank (d)1/2
Overall Length (L)2-3/8
Replacement Bearing47706
Flutes2

A double quarter-round profile is produced by this tool. The depth-of-cut setting determines whether or not a fillet is formed at the top. Switching from the standard pilot bearing to the optional 3/8" bearing introduces a fillet at the bottom of the profile. Use in a handheld or table-mounted router.

Tool No.Bearing(s)ScrewDust ShieldFlat Washer
