Shankless Countersinks with Slow Spiral Drills for Wood Screws

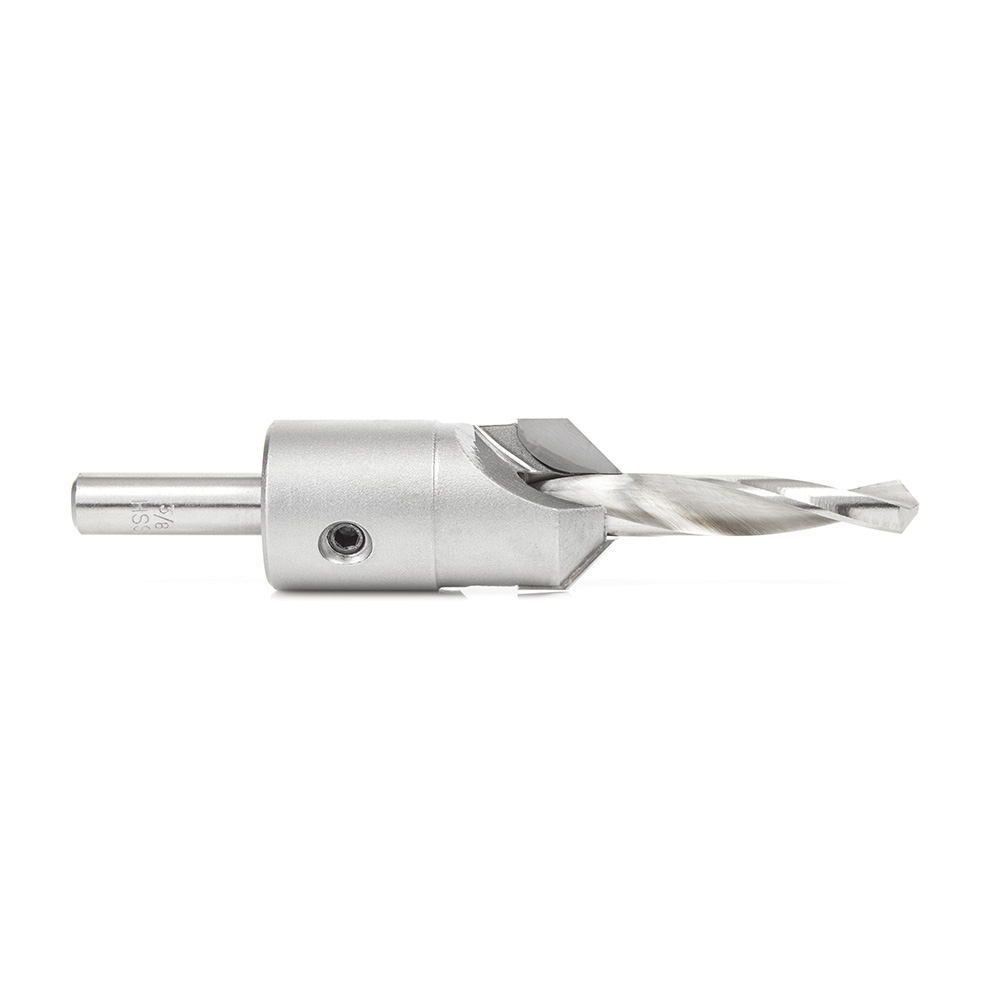

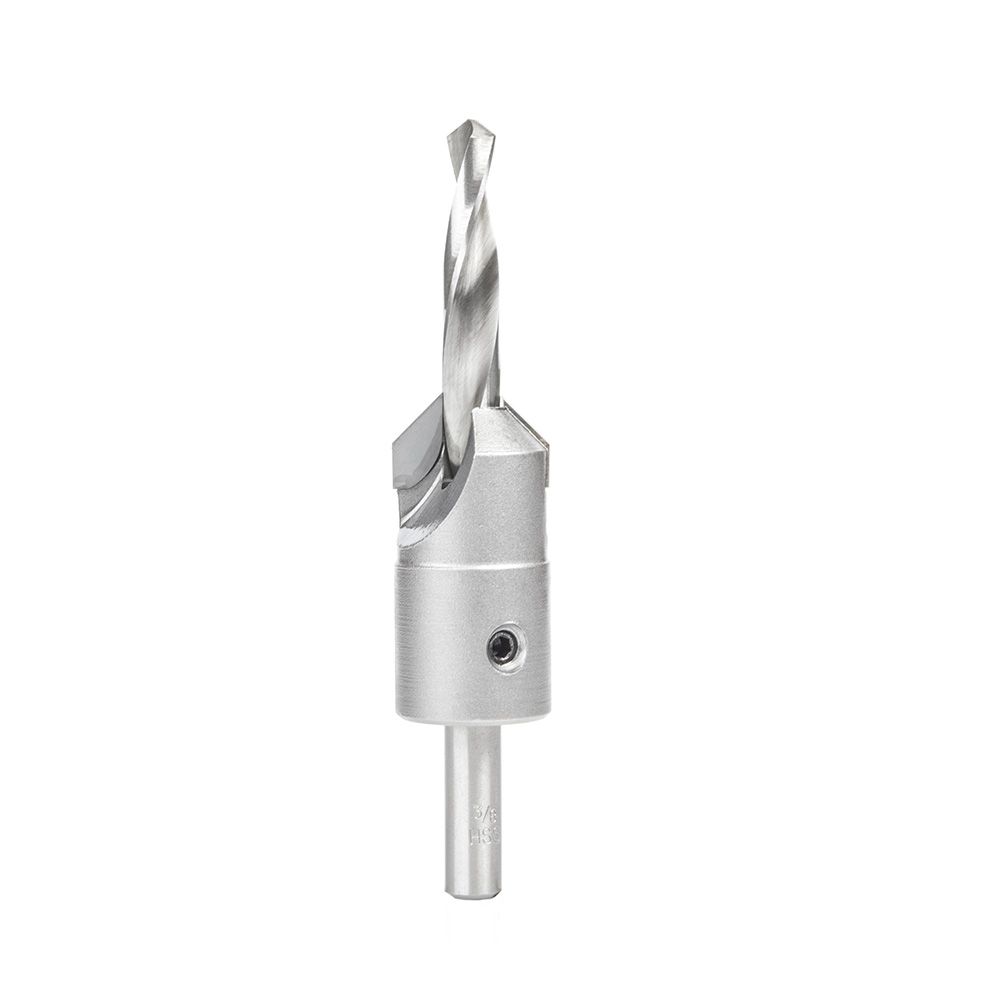

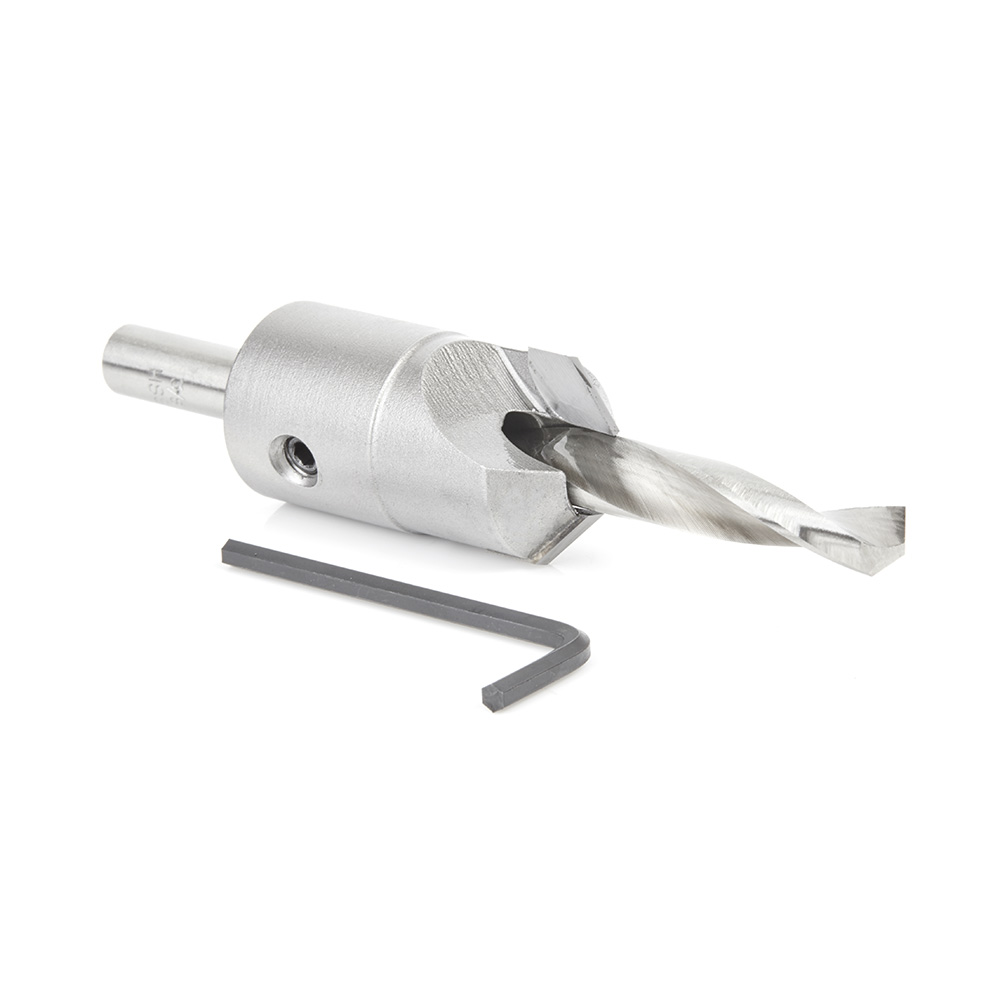

55136 Carbide Tipped 82 Degree Shankless Countersink with Slow Spiral Drill, #24 Screw 1 Dia x 3/8 Drill Dia x 3/8 Drill Shank
#55136
| (a°) Angle | 49° |
|---|---|
| (D) Diameter | 1 |
| (d) Shank | 3/8 |
| Overall Length (L) | 4-15/16 |
| Wood Screw Size | #24 |
| # Wings | 2 |
| D1 | 3/8 |
| Replacement Drill | 630-706 |
| L1 | 2 |
Available in a wide variety of sizes, complete with slow spiral HSS M2 DIN 338 fully ground drill bit.
Excellent for Drilling:
- Natural Woods
- Man-Made Boards
- MDF
- Chipboard
- Plywood
- Aluminum/Non-Ferrous
- Aluminum Composite Material (ACM)
- Composites
- Composite Decking Materials
- High Density Polyethylene (HDPE)
Warning: When drilling aluminum-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
