Quick Release Countersinks

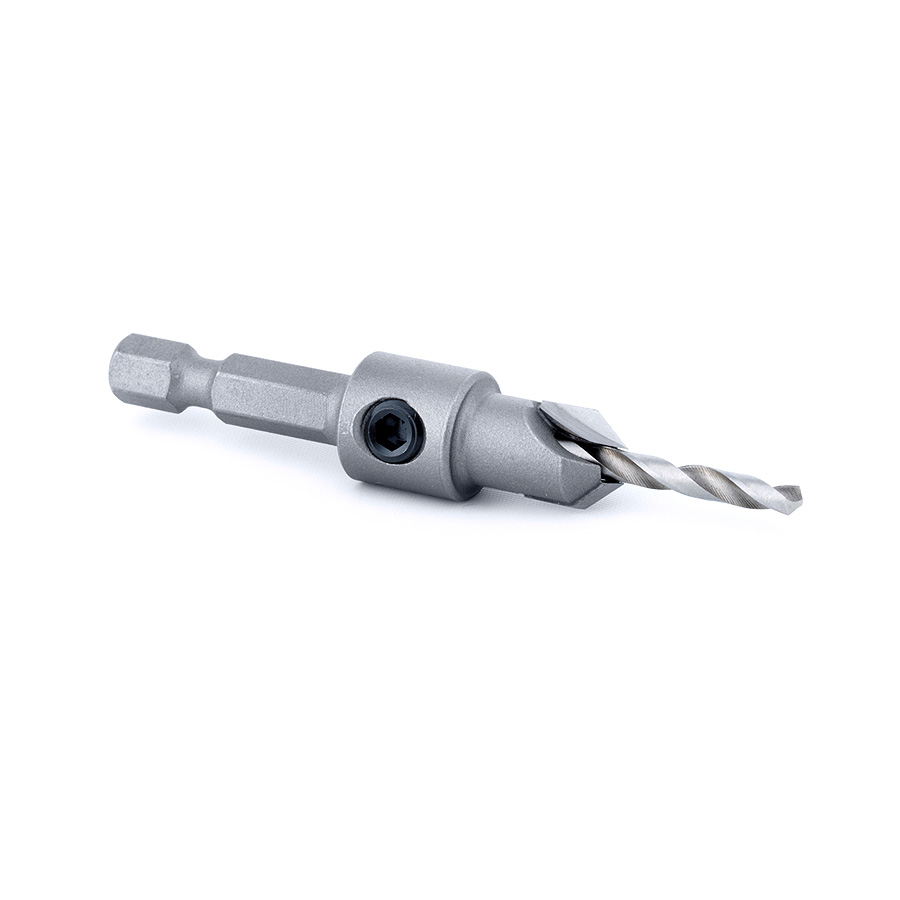

55266 Carbide Tipped 82 Degree Countersink 3/8 Dia x 49 Deg x 1/4 Quick Release Hex Shank for Wood Screw #10

#55266

Specification
(a°) Angle 49°
(D) Diameter 3/8
(d) Shank 1/4
Overall Length (L) 2-1/8
Wood Screw Size #10
D1 1/8
Replacement Drill 630-102
Optional Depth-Stop 608-120

Drill pilot hole and tapered countersink for wood screws. The 2-flute integral design ensures uniform concentric results each and every time. Carbide tipped for long lasting results in hardwood, plywood, plastics, etc.

Excellent for Drilling:

  • Natural Woods
  • Man-Made Boards
  • MDF
  • Chipboard
  • Plywood
  • Aluminum/Non-Ferrous
  • Aluminum Composite Material (ACM)
  • Composites
  • Composite Decking Materials
  • High Density Polyethylene (HDPE)

Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

Tool No.Set ScrewHex keyDrill Bit
