InStile & Rail System Flat Panel Adjustable Stile & Rail Router Bit Sets

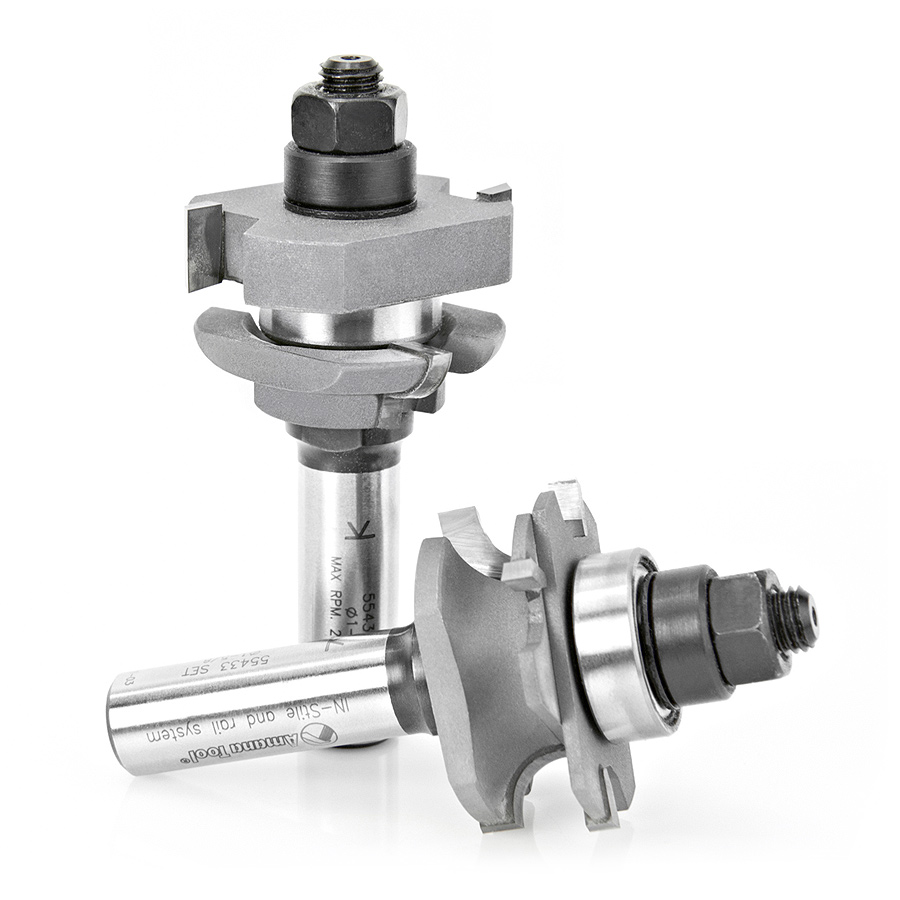

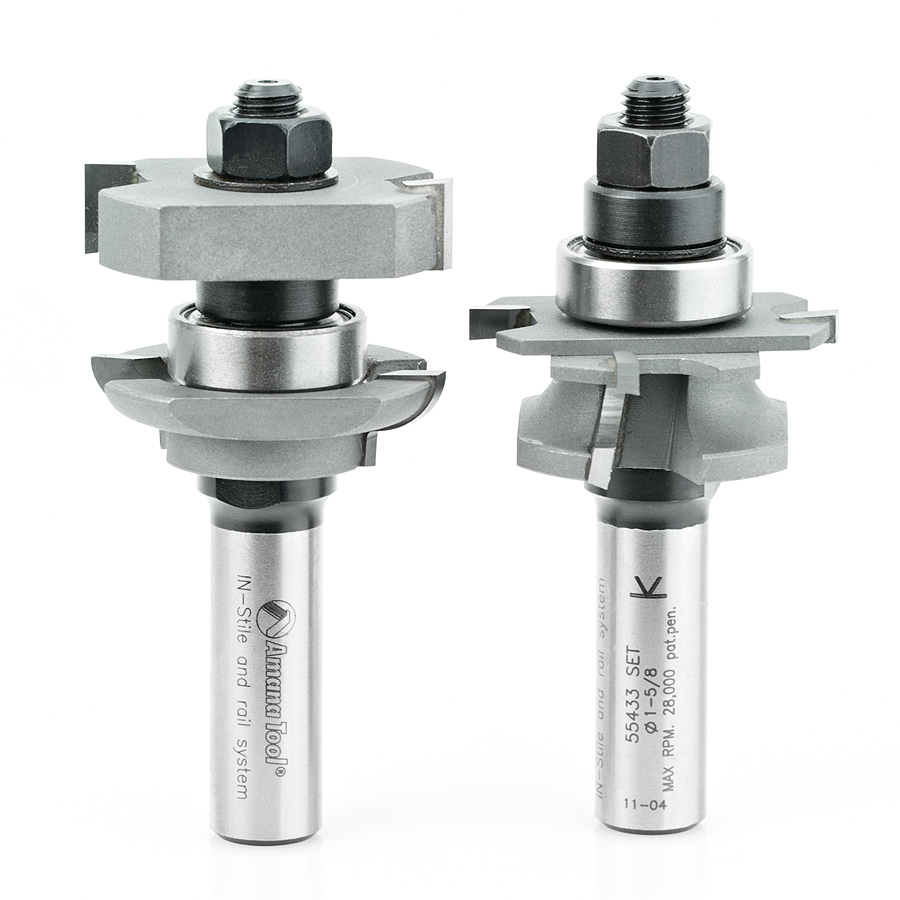

55433 Carbide Tipped Adjustable Concave Instile and Rail System 1-5/8 Dia x 5/8 to 1-1/8 x 1/4 Radius x 1/2 Inch Shank Set
#55433
| Diameter (D) | 1-5/8 |
|---|---|
| Radius (R) | 1/4 |
| Cutting Height (B) | 5/8 to 1-1/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-11/32 |
| Type | Concave |
| Flutes | 2 |
| C | 3/8 |
| B1 for 1/4" Plywood | 3/16 to 9/32 |
| B1 for 1/2" Plywood | 7/16 to 17/32 |
Bits in these sets have profile and groove or rabbet cutters and ball-bearing guide mounted on a 1/2" shank. Respacing of the components should only be necessary - using the provided shims - after the cutters have been resharpened. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.
