Undermount Bowl Roundover Router Bits with Ultra-Glide Ball Bearing Assembly

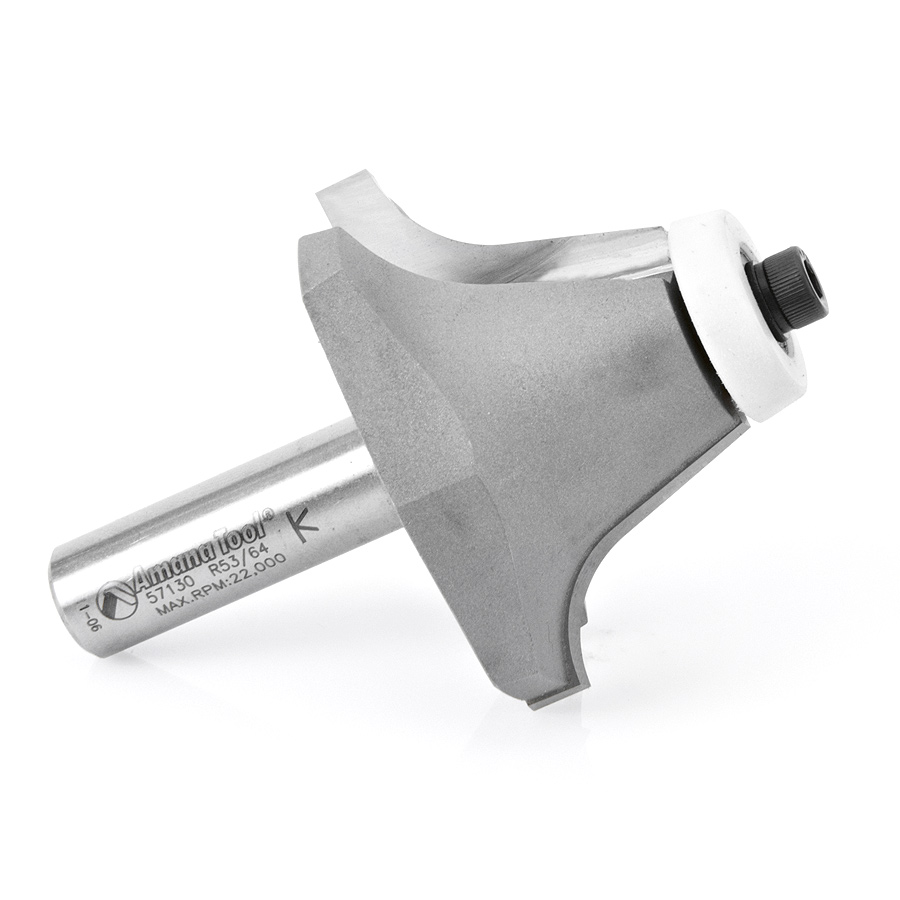

57130 Carbide Tipped Undermount Bowl Solid Surface 2-1/4 Dia x 1-1/4 x 18 Deg x 1/2 Inch Shank

#57130

Specification
Angle (a°) 18°
Diameter (D) 2-1/4
Radius (R) 9/16
Cutting Height (B) 1-1/4
B1 1
Shank (d) 1/2
Overall Length (L) 3-1/4
Type Round Over
Replacement Bearing 47726
Flutes 2
A 3/4

These bits prepare and/or finish counter-top edges in conjunction with undermount bowl installations. The roundover and ogee bits trim and profile the counter-top edges after the bowl is mounted. The bevel bit trims the sink cut-out flush with an installed undermount bowl, but it also can be used with a template to prepare a sink cut-out for a bevel-mount bowl. All these tools can be used for undermount applications of Corian® sink and bowl #'s 802S, 804S, 805S, 809S, and 871S.

Tool No.Bearing(s)ScrewDust ShieldFlat Washer
