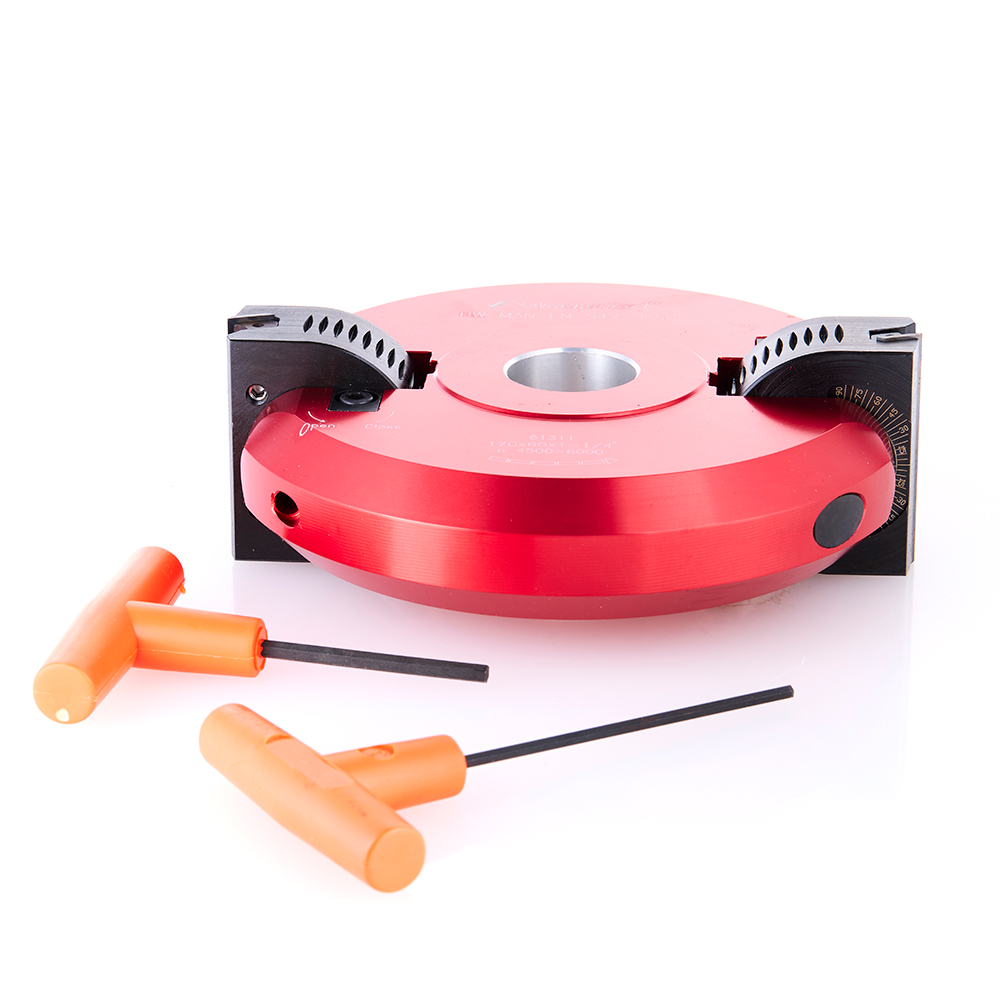

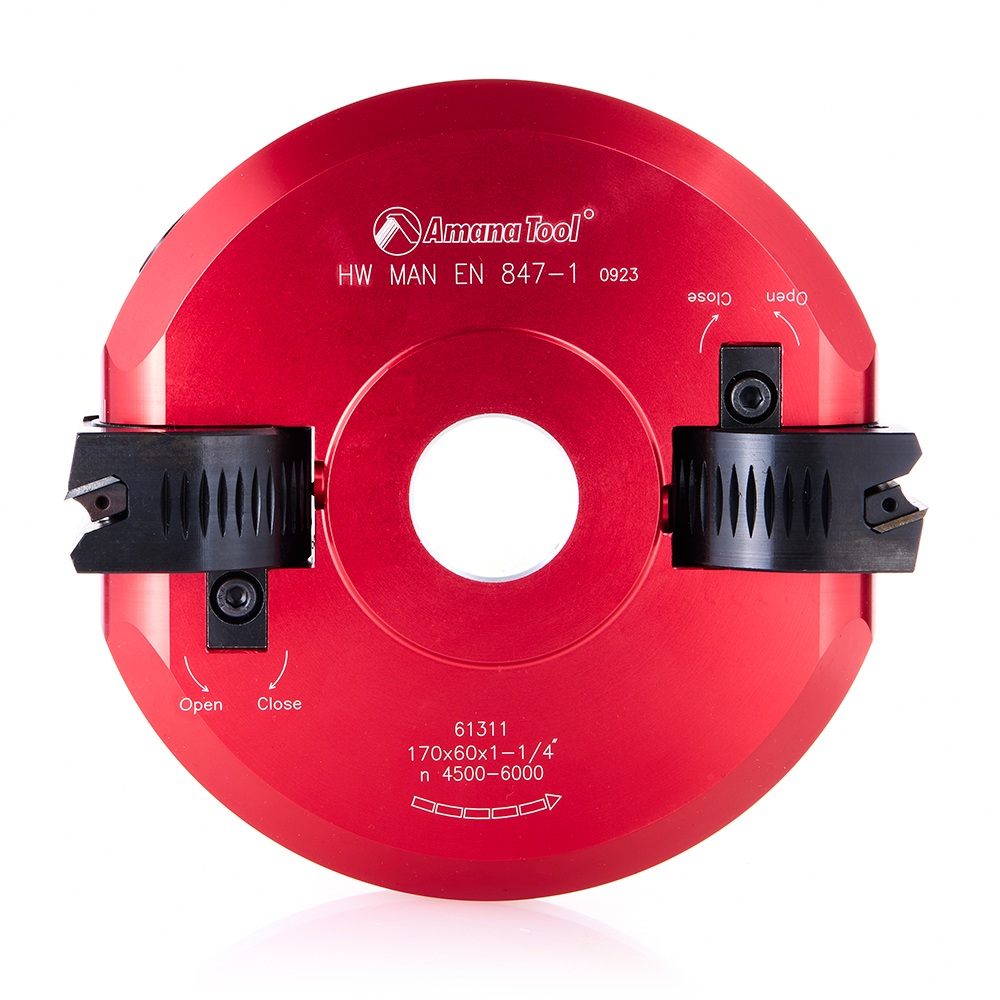

Insert Adjustable Chamfer Shaper Cutters

61311 Insert Carbide Aluminum Adjustable Chamfer -90.0 to +90.0 x 170mm (6-11/16) Dia x 60mm (2) x 1-1/4 Bore

#61311

Specification
(D) Diameter170mm (6-11/16)
(d) Bore1-1/4
(a°) Angle-/+90°
(B) Cutting Height60mm (2-3/8)
RPM4,500-6,000
Cutter BodyAluminum
Replacement KnivesICK-60

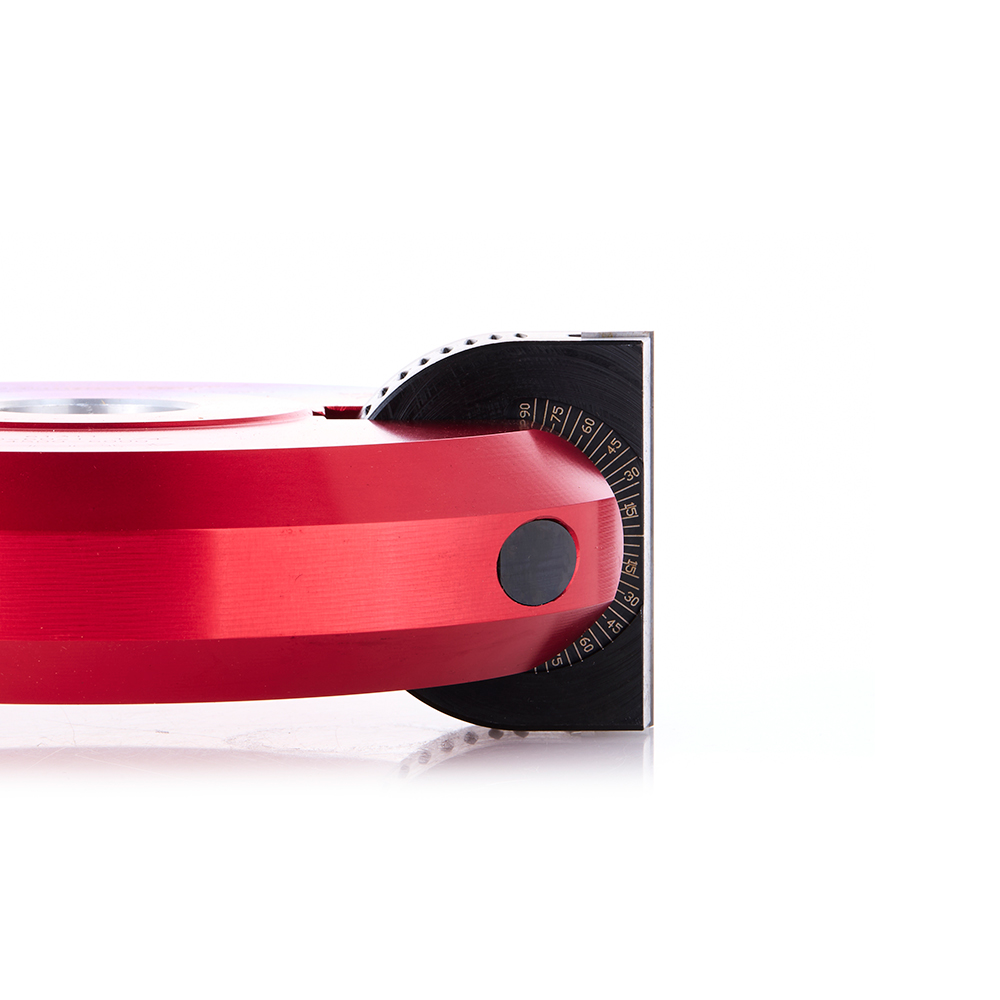

Cutterhead bodies available in hard wearing aluminum or steel, complete with tungsten carbide knives. Suitable for producing chamfer cuts at various angles in softwood, hardwood and man-made boards on a spindle molder. Cutting angle can be adjusted in 7.5° increments by using notched scale. Aluminum.

Tool No.T.C Knife
