10-Pc CNC Signmaking Router Bit Set IV

AMS-169 10-Pc CNC Signmaking Router Bit Set IV, 1/8 & 1/4 Inch Shank

#AMS-169

Specification

For the most demanding signmaking, lettering and engraving tasks. Designed for creating signs and other CNC projects in a variety of materials. Each router bit is manufactured from Amana's exclusive grade carbide according to stringent quality standards.

Designed for cutting:

  • Aluminum Brass Bronze Copper
  • Carbon Fiber
  • Laminate
  • MDF
  • Melamine
  • Plastic/Acrylic
  • Solid Surface
  • Wood
  • Veneered Plywood

Stored in a solid wood showcase storage box with a Plexiglas® clear lid.

See below for set contents.

Wood Storage Box Dimensions
12" L x 6" W x 3" H

Product Questions

Question on AMS-169 10-Pc CNC Signmaking Router Bit Set IV, 1/8 & 1/4 Inch Shank


Create Account or Login to ask a question

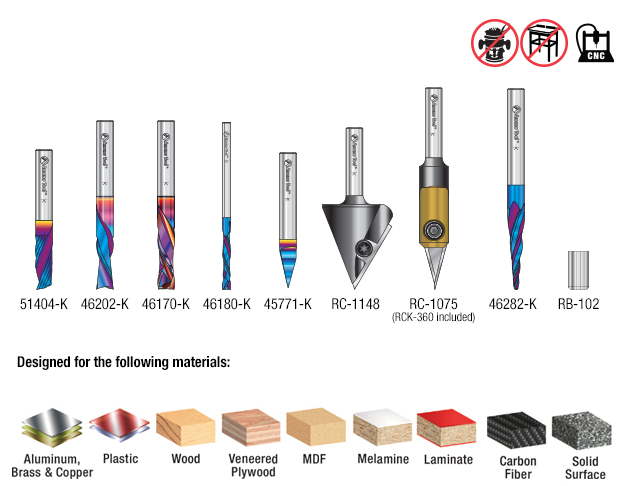

AMS-169 Set Includes:

Tool No.Product NameQty
RB-102 High Precision Steel Router Collet Reducer 1/4 Overall Dia x 1/8 Inner Dia x 1 Inch Long1
RC-1075 CNC In-Groove Insert Engraving Tool Body 1/4 Inch Shank1
51404-K Solid Carbide CNC Spektra™ Extreme Tool Life Coated Spiral 'O' Flute, Plastic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut Router Bit1
RCK-360 Solid Carbide Insert 30 Deg x 0.005 Inch V Tip Width Engraving Knife for In-Groove System1
RC-1148 Insert V-Groove 60 Deg x 59/64 x 1/4 Inch Shank CNC Router Bit1
46170-K CNC Solid Carbide Spektra™ Extreme Tool Life Coated Compression Spiral 1/4 Dia x 7/8 x 1/4 Inch Shank1
46202-K Solid Carbide Spektra™ Extreme Tool Life Coated Spiral Plunge 1/4 Dia x 3/4 x 1/4 Inch Shank1
46180-K CNC Solid Carbide Spektra™ Extreme Tool Life Coated Compression Spiral 1/8 Dia x 13/16 Inch x 1/8 Shank1
46282-K CNC 2D and 3D Carving 5.4 Deg Tapered Angle Ball Tip 1/16 Dia x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long x 4 Flute Solid Carbide Up-Cut Spiral Spektra™ Extreme Tool Life Coated Router Bit1
45771-K Solid Carbide 30 Degree Engraving 0.005 Tip Width x 1/4 Inch Shank Signmaking Spektra™ Extreme Tool Life Coated Router Bit1
