18-Pc Multi Material CNC Router Bit Collection

AMS-176 18-Pc Specialty Multi-Material CNC Router Bit Collection, 1/4 Inch Shank

#AMS-176

Specification
(d) Shank 1/4

Designed for a wide variety of applications. Each router bit is manufactured from Amana’s exclusive grade carbide according to stringent quality standards.

Designed for cutting:

  • Aluminum Brass Bronze Copper
    Gold Silver & Titanium
  • Aluminum Composite Material (ACM)
  • Aluminum FoamCore
  • Composite
  • Corrugated Polyproplene
  • Fiberglass
  • Fiberglass PCB Board
  • FoamCore
  • Gatorfoam®**
  • Graphite
  • Melamine
  • MDF/HDF
  • Laminate
  • Phenolic Composites
  • Plastic Acrylic & Plexiglas®
  • Sign Foam Sign Board & HDU
  • Solid Surface
  • Steel and Stainless Steel
  • Veneered Plywood
  • Wood
  • Xanita® Lightboard™ and X-Board™
  • Durabond*

*Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side pre-finished requiring no decoration.

**Gatorfoam® Foam Board a polystyrene foam board bonded between two layers of Luxcell® wood-fiber veneer.

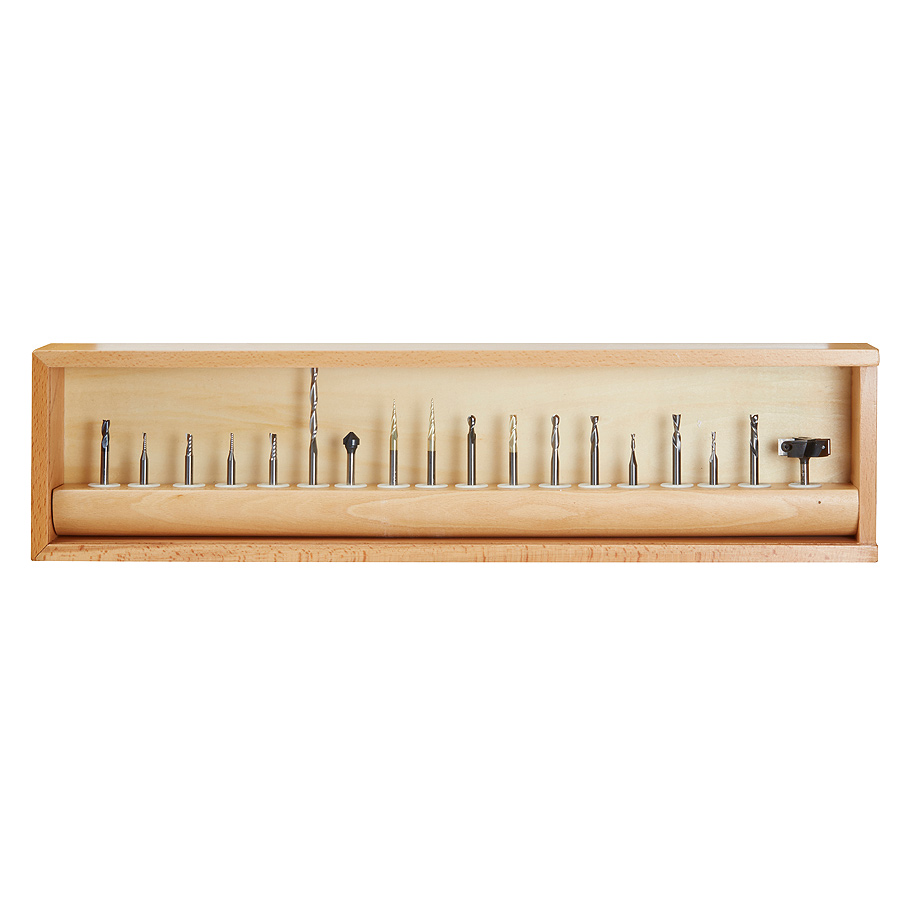

Stored in a solid wood showcase storage box with a Plexiglas® clear lid.

See below for set contents.

Wood Storage Box Dimensions
24-1/2" L x 6-1/2" W x 3" H

Product Questions

Question on AMS-176 18-Pc Specialty Multi-Material CNC Router Bit Collection, 1/4 Inch Shank


Create Account or Login to ask a question

AMS-176 Set Includes:

Tool No.Product NameQty
46170 CNC Solid Carbide Compression Spiral 1/4 Dia x 7/8 x 1/4 Inch Shank1
46376 Solid Carbide Up-Cut Ball Nose Spiral 1/4 Dia x 1 Inch x 1/4 Shank Router Bit1
46200 Solid Carbide Spiral Plunge 1/8 Dia x 1/2 x 1/4 Inch Shank x 2 Inch Long Down-Cut1
46202 Solid Carbide Spiral Plunge 1/4 Dia x 3/4 x 1/4 Inch Shank Down-Cut1
46100 Solid Carbide Spiral Plunge 1/8 Dia x 1/2 x 1/4 Inch Shank Up-Cut1
46102 Solid Carbide Spiral Plunge 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut1
51402 Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/4 Dia x 5/8 x 1/4 Inch Shank Up-Cut1
51411 Solid Carbide CNC Spiral 'O' Single Flute, Plastic Cutting 1/8 Dia x 1/2 x 1/4 Shank x 2 Inch Long Up-Cut Router Bit1
46272 Solid Carbide CNC Foam Up-Cut Cutting Square End Spiral 1/4 Dia x 2-1/4 x 1/4 Shank x 2-1/2 Inch Long Router Bit1
46426 Solid Carbide Up-Cut Spiral Ball Nose 1/8 Radius x 1/4 Dia x 1/2 x 1/4 Shank x 2-1/2 Inch Long x 2 Flute Router Bit1
46280 CNC 2D and 3D Carving 6.2 Deg Tapered Angle Ball Tip x 1/32 Dia x 1/64 Radius x 1 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit1
46282 CNC 2D and 3D Carving 5.4 Deg Tapered Angle Ball Tip 1/16 Dia x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long x 4 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit1
51404 Solid Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut Router Bit1
45762 Carbide V-Groove 90 Deg. Folding for Composite Material Panels Like SCM & TCM 0.090 Inch Tip Width x 13/64 x 1/2 Dia. x 1/4 Inch Shank AlTiN Coated Router Bit1
51454 Solid Carbide CNC Spiral 'O' Single Flute, Aluminum Cutting 1/8 Dia x 1/2 x 1/4 Shank x 2 Inch Long Up-Cut Router Bit 1
51464 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 3-Flute x 1/4 Dia x 5/8 x 1/4 Shank x 2-3/8 Inch Long Up-Cut Router Bit / 45º Corner Chamfer End Mill1
RC-2249 Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 2+2 Flute Design 1-1/2 Dia x 1/2 x 1/4 Inch Shank Router Bit1
46094 Solid Carbide Up-Cut Spiral 1/4 Dia x 3/4 x 1/4 Shank x 2-1/2 Inch Long Composite, Fiberglass & Phenolic Cutting ZrN Coated Router Bit1
