Insert Carbide Flush Trim Router Bits

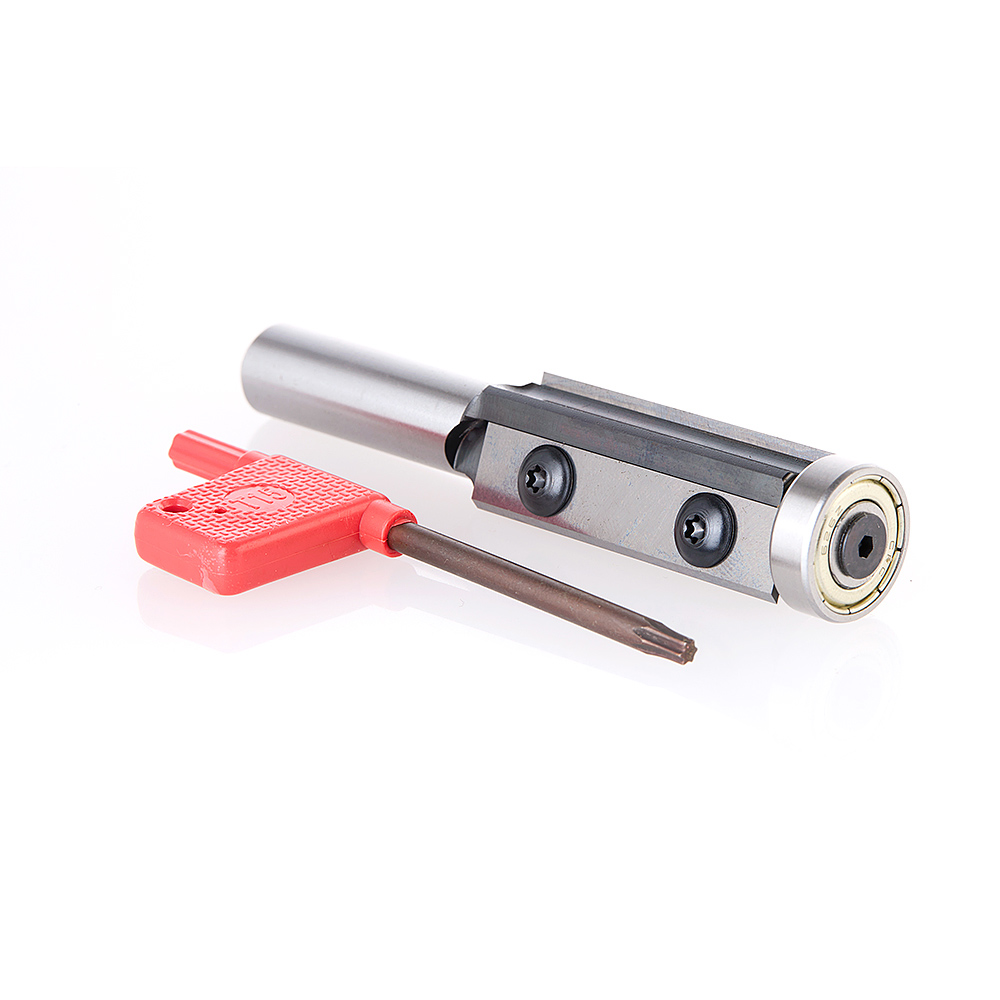

RC-1006 Insert Solid Carbide Flush Trim 3/4 Dia x 50mm x 1/2 Inch Shank

#RC-1006

Specification
Diameter (D) 3/4
Cutting Height (B) 50mm
Shank (d) 1/2
Overall Length (L) 4-5/16
Replacement Bearing 47711

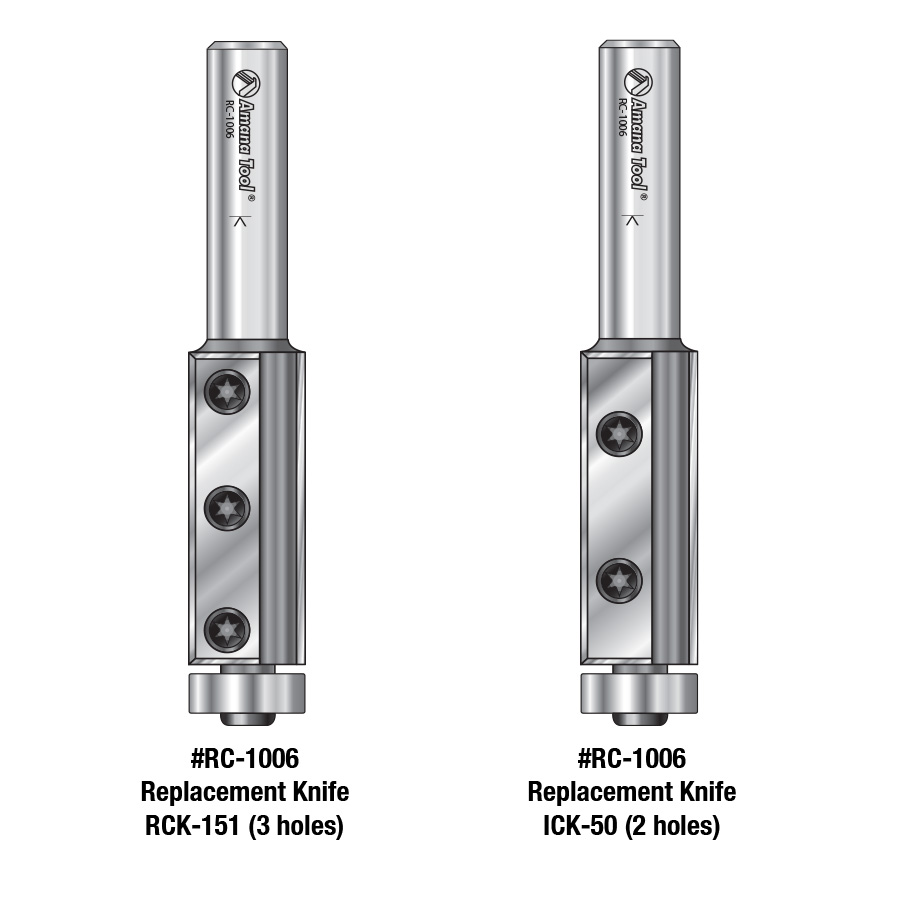

Replacement Knives RCK-151 (3 Holes) ICK-50 (2 Holes)
Flutes 2

In a production environment, insert tooling reduces downtime to a minimum. Each throw-away insert knife in this flush trimming bit has multiple edges. Rotate the knife to expose a fresh cutting edge. Tips can be replaced at any time, even mid-job, without changing the router setup. Has two cutting edges per knife. This tool is meant for difficult work. The knives are held with 2 or 3 screws.

Tool No.Bearing(s)KnifeKnifeDiamond-Like Carbon (DLC) KnifeTorx keyKnife screwsBearing screws
