Economy Insert Staggered Plunge Router Bits
RC-1024 Insert Economy Insert Staggered Plunge 3/4 Dia x 3/4 x 1/4 Inch Shank
#RC-1024
| Diameter (D) | 3/4 |
|---|---|
| Cutting Height (B) | 3/4 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2 |
| Replacement Knives | AMA-12 |
| Flutes | 1+1 |

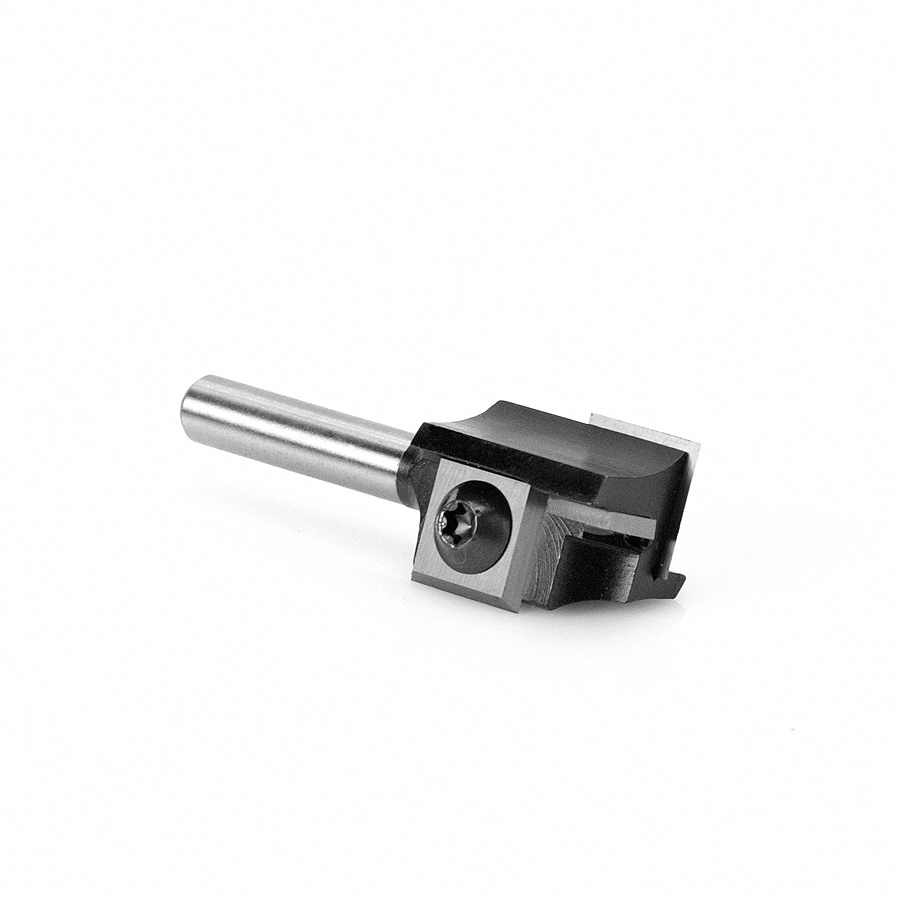

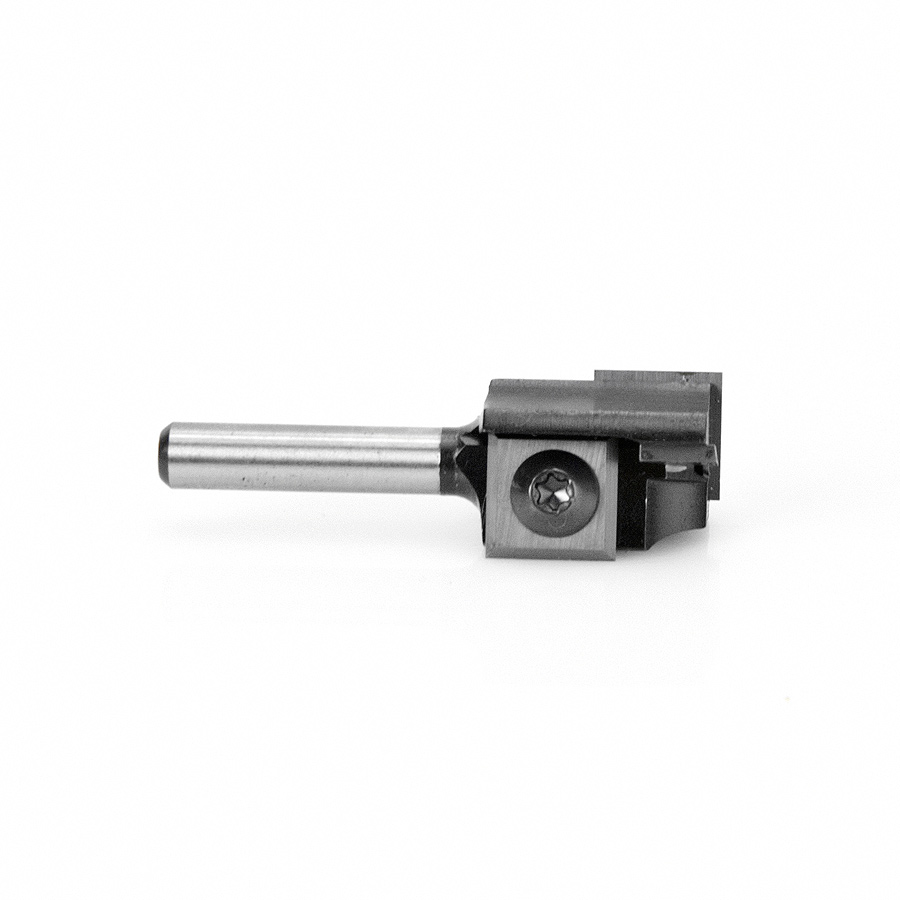

Staggered insert knives along with a fixed plunge knife (see diagram), utilizes 4-sided carbide inserts. Economically priced.
| Tool No. | Knife | Diamond-Like Carbon (DLC) Knife | Screw | Torx key |
|---|---|---|---|---|
Product Questions
What are the technical specs for RC-1024? I would like to calculate the speed and feed rate as well as the plunge information. None of it is located on your website. Thanks.
Question by: Alberto Ruiz on Jun 28, 2016, 8:45 AM
Thank you for the question.
The Tool No. RC-1024 is an insert carbide staggered plunge bit that has an Outside Diameter (D) of ¾” X Cutting Height (B) ¾” X Shank (d) ¼” X Overall Length (L) 2” with 2 flutes.
The chip load is 0.006” – 0.008”. The recommended RPM is 18,000.
The Tool No. RC-1024 is an insert carbide staggered plunge bit that has an Outside Diameter (D) of ¾” X Cutting Height (B) ¾” X Shank (d) ¼” X Overall Length (L) 2” with 2 flutes.
The chip load is 0.006” – 0.008”. The recommended RPM is 18,000.
Answer by: admin admin on Nov 10, 2016, 2:50 PM
