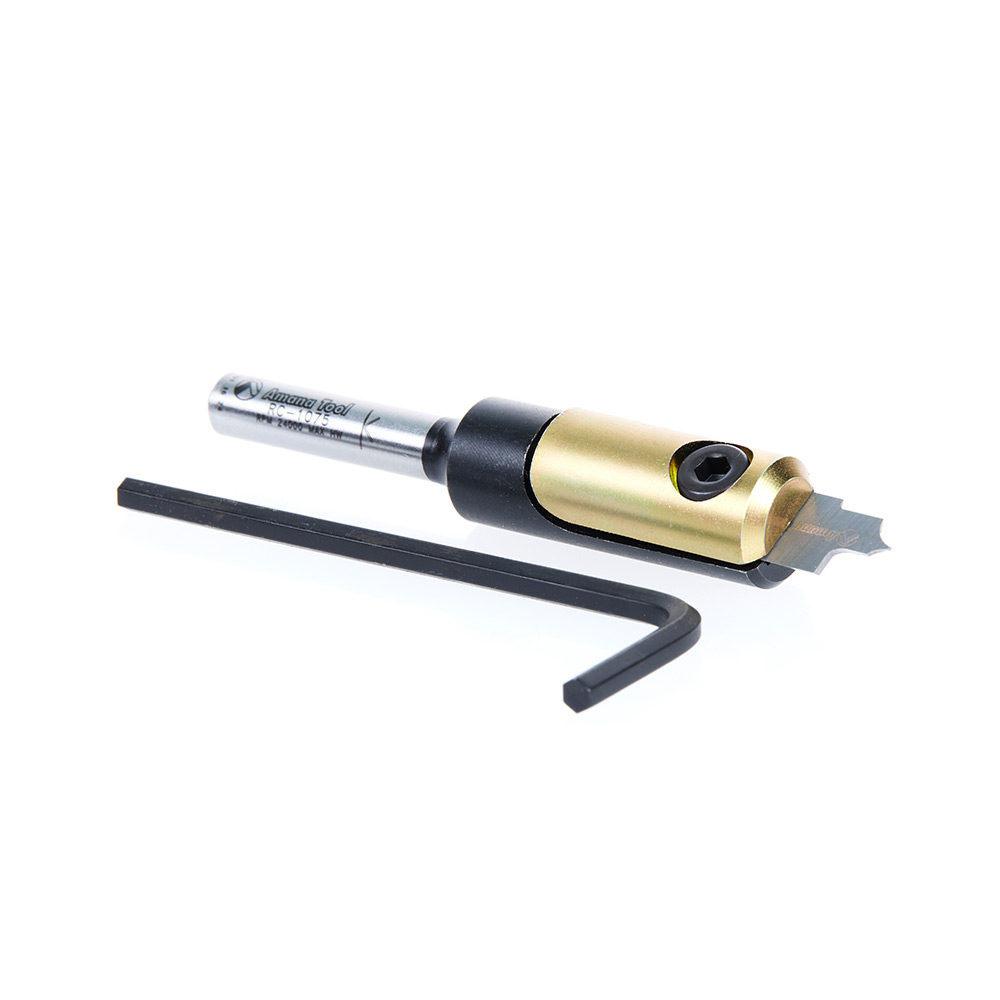

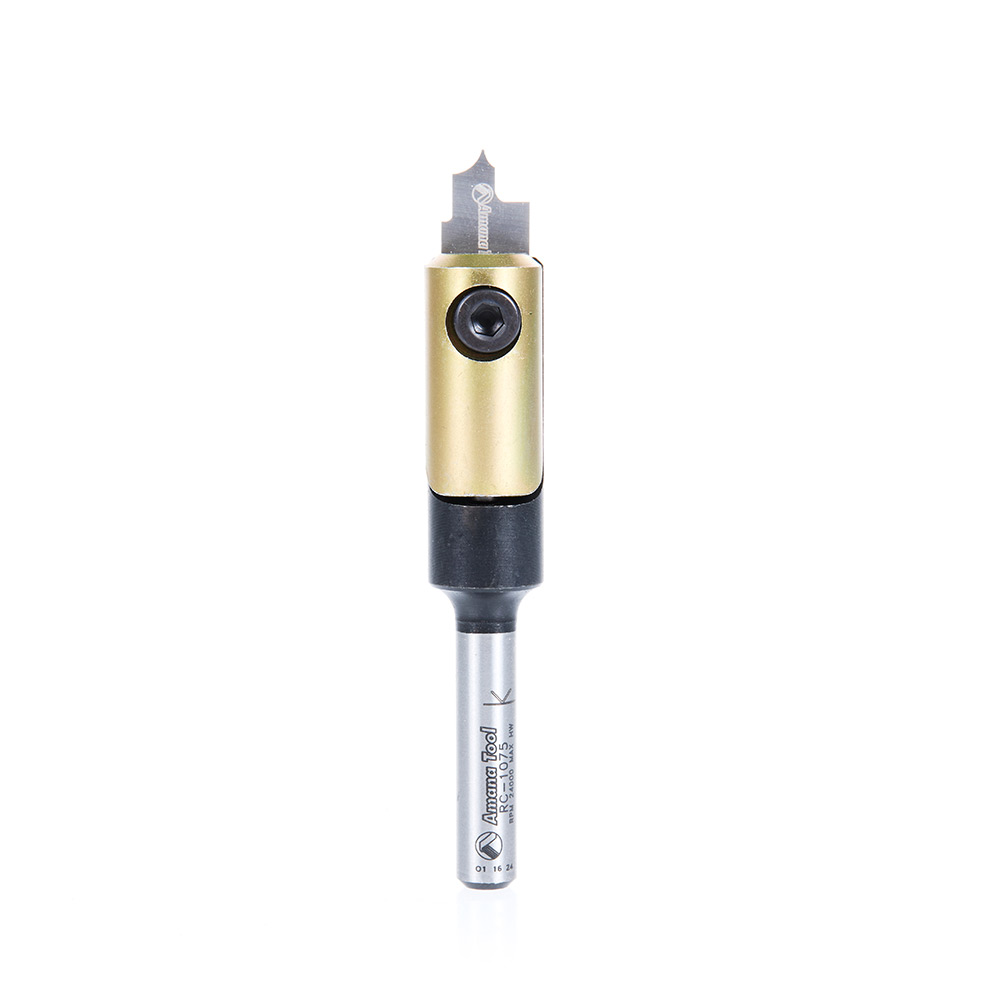

In-Groove CNC Insert Engraving Tool Body & Replacement Knife
RC-2474 CNC In-Groove Insert Point Round Over Engraving Tool 17/64 Dia x 15/64 x 1/4 Inch Shank Router Bit
#RC-2474

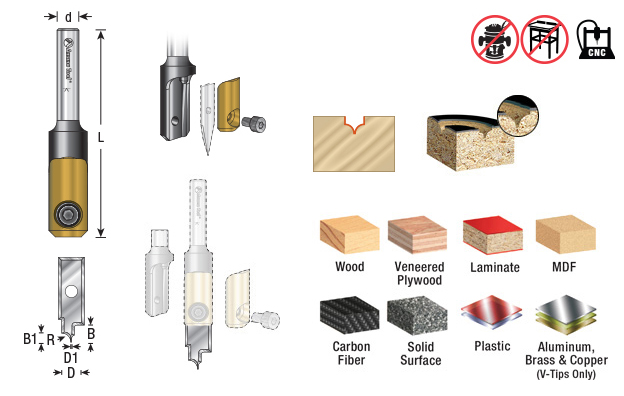

| (D) Diameter | 17/64 |
|---|---|
| D1 | 1/64 |
| (R) Radius | 1/8 |
| (B) Cutting Height | 15/64 |
| B1 | 1/8 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-1/2 |
CNC tool bodies are expertly balanced for virtually no vibration to provide superior cutting results.
Excellent solution for etching.

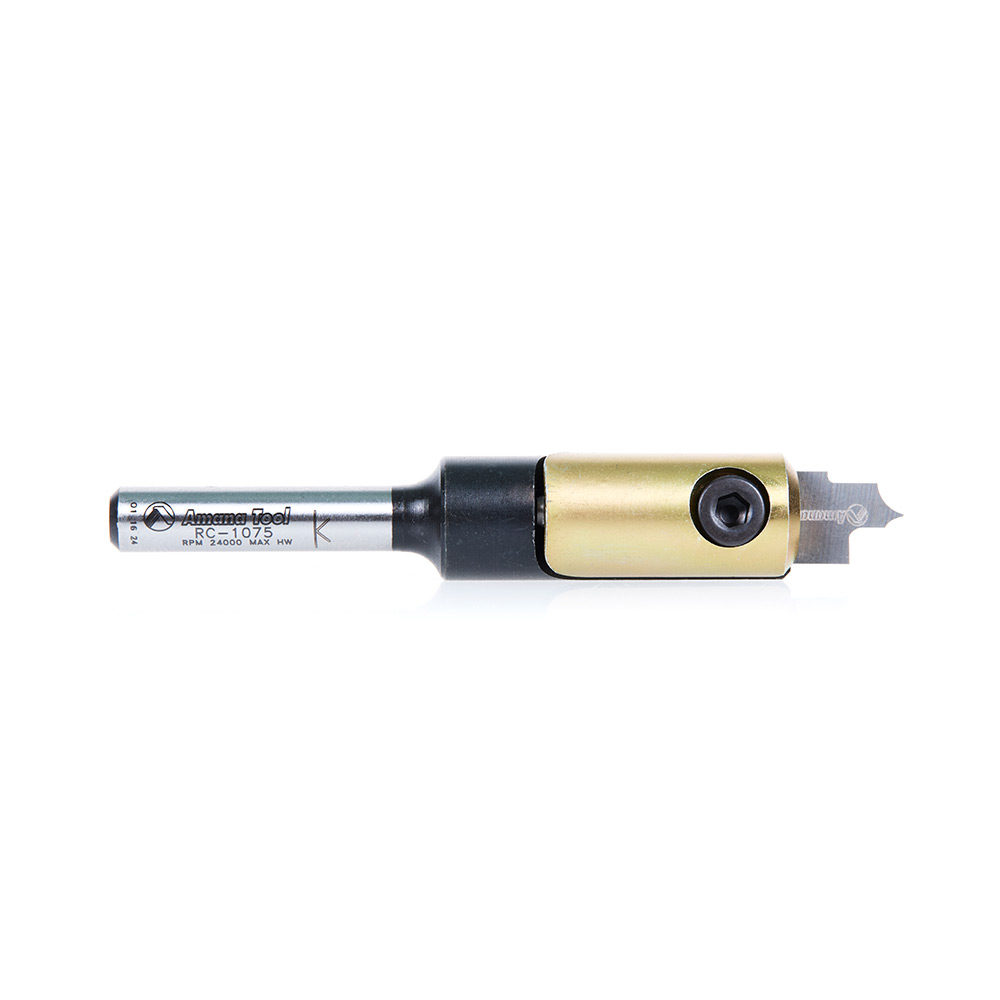

Tool Body: RC-1075; Knife: RCK-416
Designed for cutting and engraving:
- Laminated materials
- Veneers
- MDF
- Plastics
- Soft Wood
- Hard Wood
- Phenolic
- Solid surface
- Carbon fiber
- PCB board
- HDPE
- King Starboard® / Marine Building Material
- Aluminum brass & copper*
- Corian
- Poly (methyl methacrylate) (PMMA)
- Acrylic Stone
- Coroplast®**
*V-Tip inserts can also engrave aluminum brass & copper.
**A soft plastic cardboard made with super soft, super flexible PVC.
