Mission Style Adjustable Tongue & Groove Insert CNC Router Bits

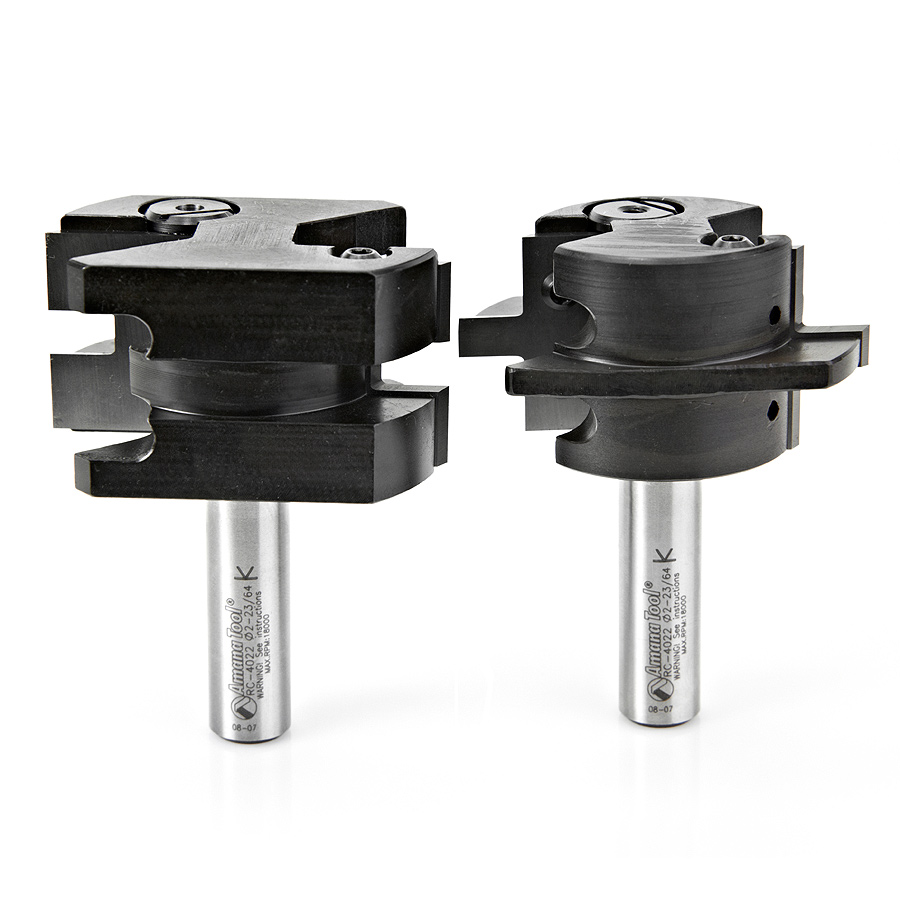

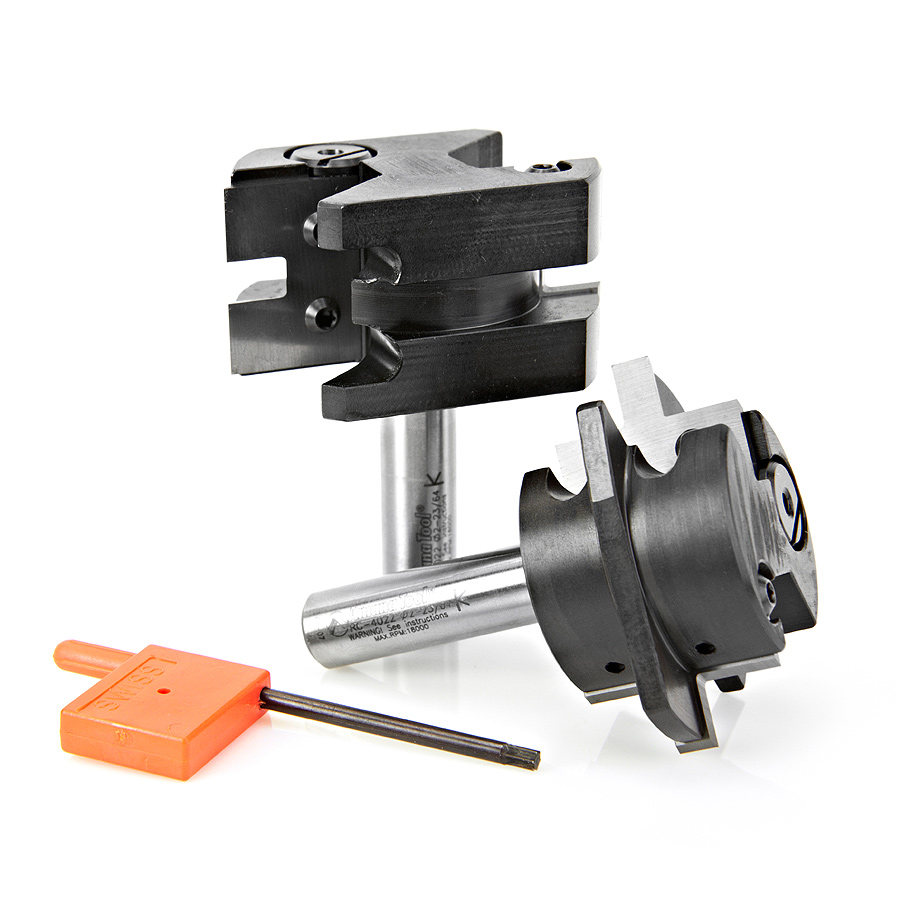

RC-4022 Mission Style Adjustable Insert Tongue & Groove 2-3/8 Dia x 1-3/16 x 1/2 Inch Shank Set
#RC-4022
| (D) Diameter | 2-3/8 |
|---|---|
| (B) Cutting Height | 1-3/16 |
| (d) Shank | 1/2 |
| Overall Length (L) | 2-15/16 |
| t | 6.1-6.6mm (1/4" + ) |
| Replacement Knives | RCK-330, RCK-332, RCK-334, RCK-336 |
| C | 3/8 |
| Flutes | 2 |
Adjust the panel groove width from 5.4mm to 6.6mm using the easy to use adjustment knob – no shims necessary.
The perfect fix for undersized plywood flat panel “Mission Style Arts & Crafts and Shaker” cabinet doors!
Set includes unique adjustment system.
- Designed to cut precise grooves to provide undersized plywood veneered panels with a snug rattle-free fit.
- Each set includes 2 pcs (1 for stile cuts & 1 for rail cuts).
