Insert Mini Superabbet Router Bits
RC-49357 Insert Mini Superabbet 1-1/8 Dia x 12mm x 1/4 Inch Shank Router Bit
#RC-49357

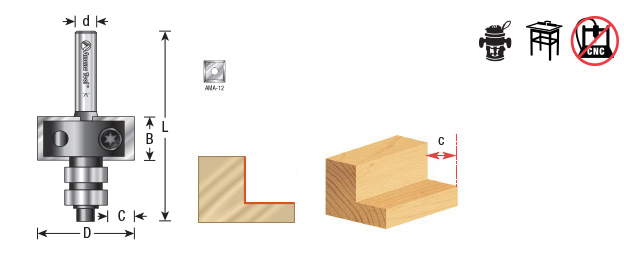

| Diameter (D) | 1-1/8 |
|---|---|
| Cutting Height (B) | 12mm (.472) |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-1/4 |
| Replacement Knives | AMA-12 |
| Flutes | 2 |
| C | Flush-5/16 |
A mini version of the Superabbet™, this tool features four-sided replaceable carbide knives and a reduced cut depth capacity. It uses the same twin ball-bearing guide collar assortment to produce the same extensive range of precise rabbet widths. The standard tool is supplied with a collar for 1/2" rabbet width. Optional collars are available individually.
Maximum RPM 24,000.
Standard depth=5/16". Knives also available for MDF & solid surface materials.
Optional Collars (Sold Separately)
Tool No: (C) Rabbet Depth
67416: Flush
67418: 1/32"
67420: 1/16"
67422: 1/8"
67424: 7/32"
67426: 3/16"
67427: 3/16"
67428: 1/4"
67430: 9/32"
