8-Pc CNC Signmaking, Lettering & Engraving Starter Router Bit Collection #IV

AMS-178 8-Pc Artist Signmaking Starter CNC Router Bit Collection #IV, 1/4 Inch Shank

#AMS-178

Specification

For the most demanding signmaking lettering and engraving tasks. Designed for creating signs and other CNC projects in a variety of materials. Each router bit is manufactured from Amana's exclusive grade carbide according to stringent quality standards.

Designed for cutting:

  • Aluminum Brass Bronze Copper
  • Carbon Fiber
  • Laminate
  • MDF
  • Melamine
  • Plastic/Acrylic
  • Solid Surface
  • Wood
  • Veneered Plywood

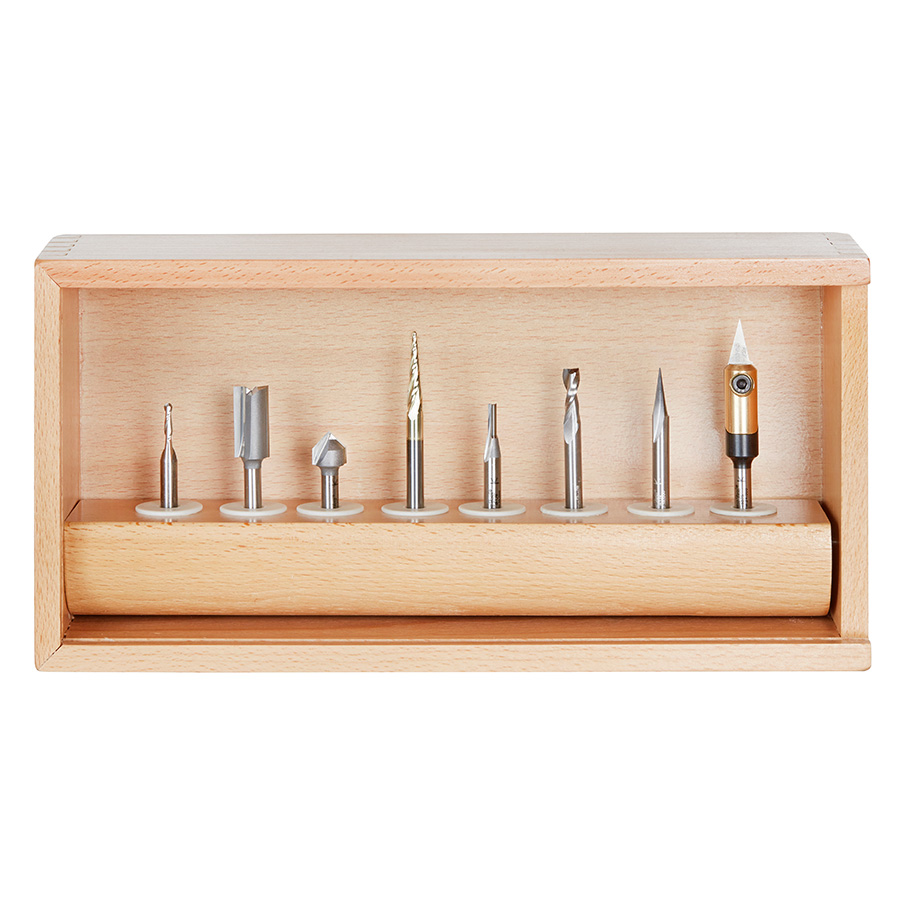

Stored in a solid wood showcase storage box with a Plexiglas® clear lid.

See below for set contents.

Wood Storage Box Dimensions
12" L x 6" W x 3" H

Product Questions

Question on AMS-178 8-Pc Artist Signmaking Starter CNC Router Bit Collection #IV, 1/4 Inch Shank


Create Account or Login to ask a question

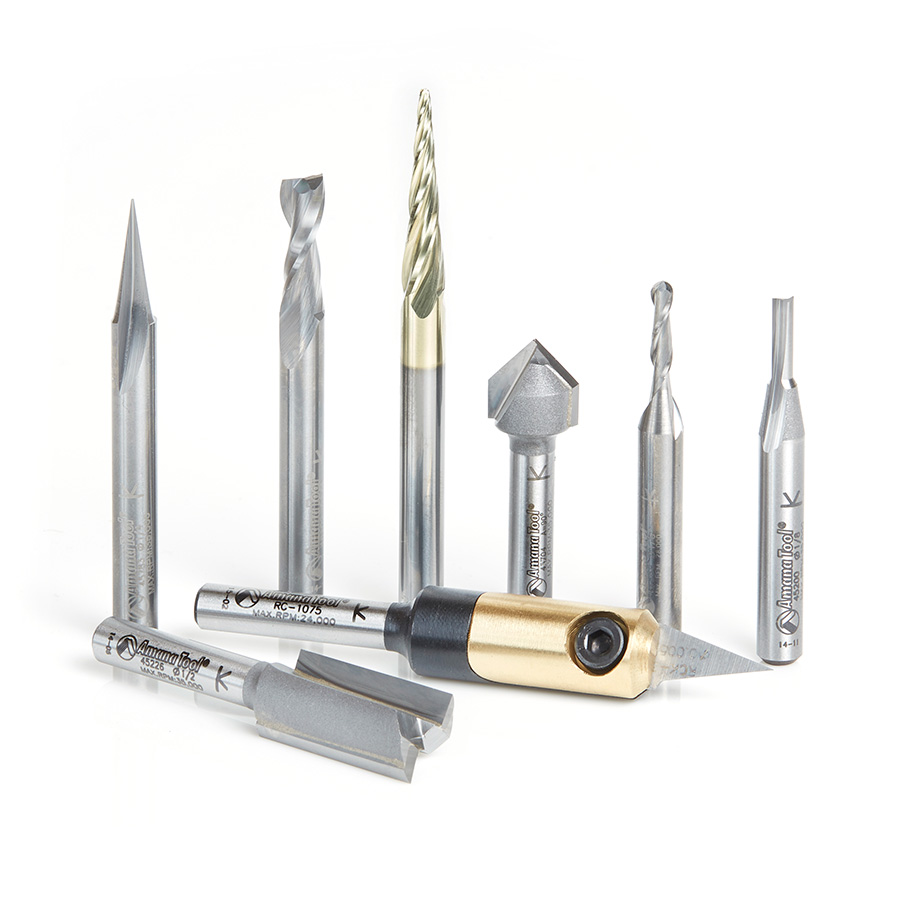

AMS-178 Set Includes:

Tool No.Product NameQty
45783 Solid Carbide Carving Liner 18 Deg x 1/4 Dia x 5/8 x 1/4 Inch Shank x 1-Flute1
46102 Solid Carbide Spiral Plunge 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut1
46282 CNC 2D and 3D Carving 5.4 Deg Tapered Angle Ball Tip 1/16 Dia x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long x 4 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit1
RC-1075 CNC In-Groove Insert Engraving Tool Body 1/4 Inch Shank1
46369 Solid Carbide Up-Cut Ball Nose Spiral 1/8 Dia x 1/2 Inch x 1/4 Shank Router Bit1
RCK-360 Solid Carbide Insert 30 Deg x 0.005 Inch V Tip Width Engraving Knife for In-Groove System1
45704 Carbide Tipped V-Groove 90 Deg x 1/2 Dia x 1/4 x 1/4 Inch Shank1
45200 Solid Carbide Cutting Edge Straight Plunge High Production 1/8 Dia x 7/16 x 1/4 Inch Shank1
45226 Carbide Tipped Straight Plunge High Production 1/2 Dia x 1 Inch x 1/4 Shank1
