AMS-CNC-58 - Master CNC Router Bit Collection, 58-Pcs

#AMS-CNC-58

Specification

CNC Master Router Bit Collection with Lockable Plywood Veneer Storage Display Cabinet

Please or

We have the tool you need for every CNC application! Whether you’re creating signs building cabinets or surfacing large areas we have created a versatile mix of router bits to complete your project. Each router bit is manufactured from Amana’s exclusive grade carbide according to stringent quality standards.

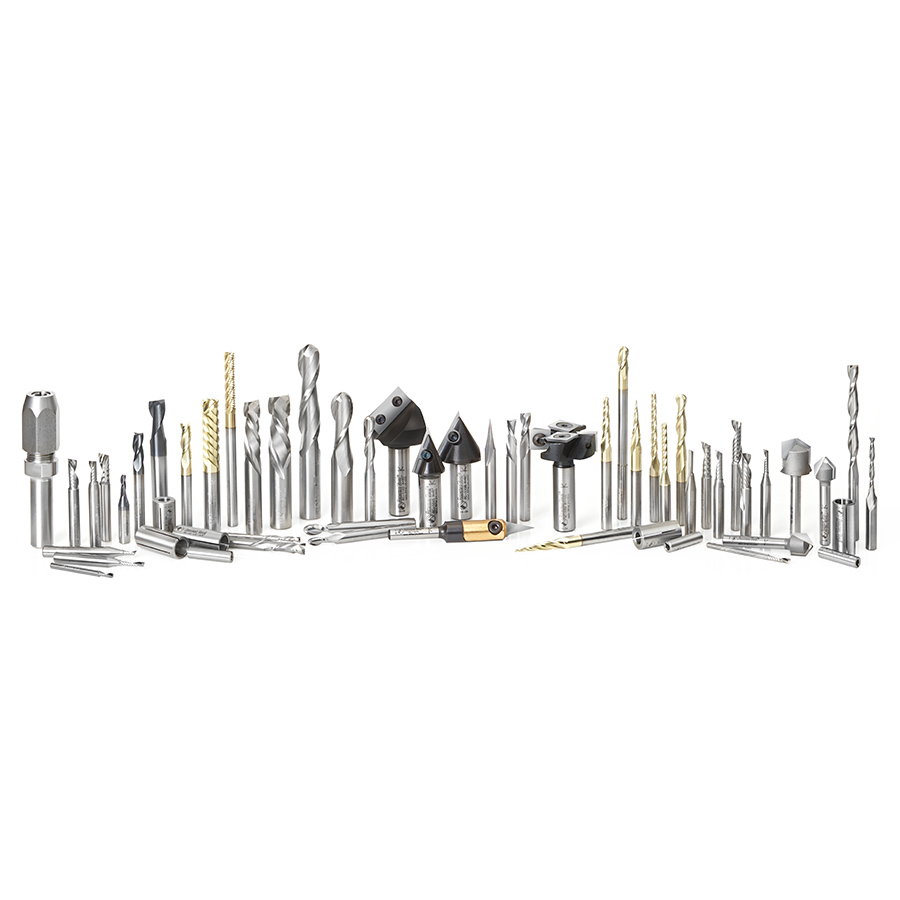

58 pieces of the most versatile CNC industrial quality high performance solid carbide carbide tipped and solid carbide insert router bits. Router bits feature superior cutting edges mirror like finish (on some of the tools) balancing carbide of different grades for different materials/applications and excellent tool design to allow for repeat sharpening.

Designed for cutting:

  • Aluminum Brass Bronze Copper
    Gold Silver & Titanium
  • Aluminum Composite Material (ACM)
  • Aluminum FoamCore
  • Composite
  • Corrugated Polyproplene
  • Fiberglass
  • Fiberglass PCB Board
  • FoamCore
  • Gatorfoam®
  • Graphite
  • Melamine
  • MDF/HDF
  • Laminate
  • Phenolic Composites
  • Plastic Acrylic & Plexiglas®
  • Sign Foam Sign Board & HDU
  • Solid Surface
  • Steel and Stainless Steel
  • Veneered Plywood
  • Wood
  • Xanita® Lightboard™ and X-Board™

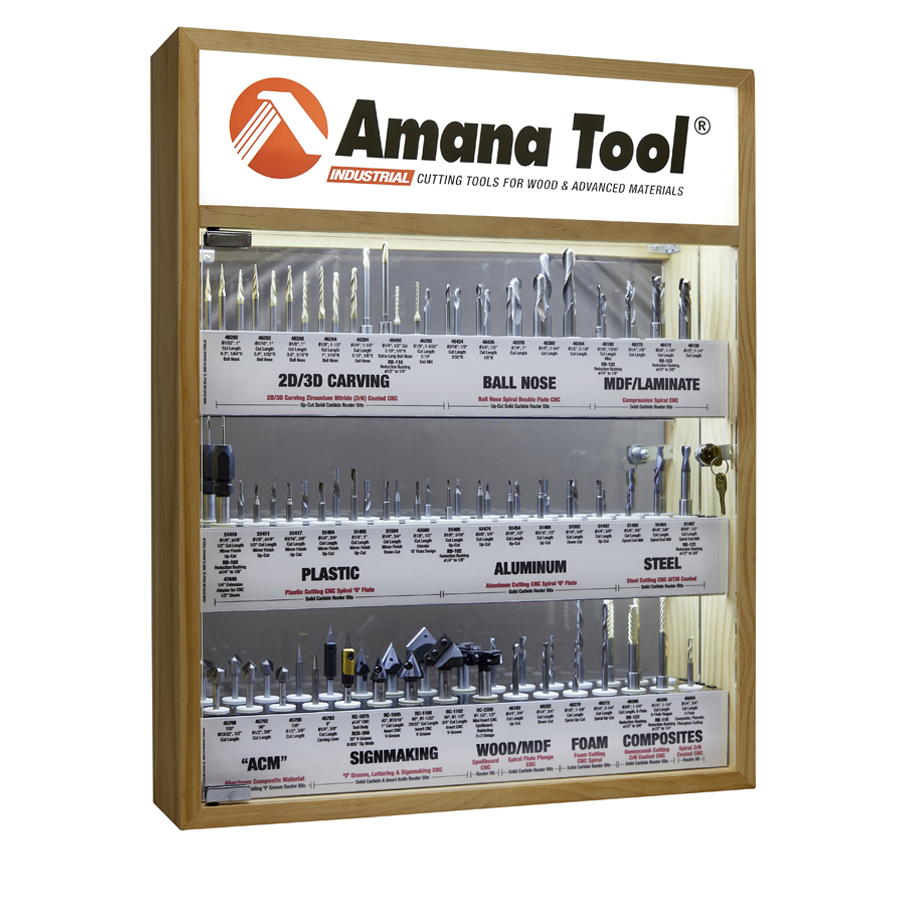

Stored in a freestanding or wall mounted wood display with locking clear acrylic door.

See below for set contents.

Wood Storage Box Dimensions
27-1/2" H x 22-1/2" W x 6" Deep

Vectric compatible tool file for AMS-CNC-58 available in the Vetric Library tab above.

AMS-CNC-58 Set Includes:

Tool No.Product NameQty
43500 Solid Carbide Single 'O' Flute Plastic Cutting 1/8 Dia x 1/2 x 1/4 Inch Shank1
RB-102 High Precision Steel Router Collet Reducer 1/4 Overall Dia x 1/8 Inner Dia x 1 Inch Long1
RB-116 High Precision Steel Router Collet Reducer 1/2 Overall Dia x 1/4 Inner Dia x 1 Inch Long1
RB-122 High Precision Steel Router Collet Reducer 1/2 Overall Dia x 3/8 Inner Dia x 1-3/16 Long1
45783 Solid Carbide Carving Liner 18 Deg x 1/4 Dia x 5/8 x 1/4 Inch Shank x 1-Flute1
51502 Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/4 Dia x 5/8 x 1/4 Inch Shank Down-Cut1
46170 CNC Solid Carbide Compression Spiral 1/4 Dia x 7/8 x 1/4 Inch Shank1
46188 CNC Solid Carbide Compression Spiral 1/2 Dia x 1-1/4 x 1/2 Inch Shank1
46172 CNC Solid Carbide Compression Spiral 3/8 Dia x 1-1/4 Inch x 3/8 Shank1
46376 Solid Carbide Up-Cut Ball Nose Spiral 1/4 Dia x 1 Inch x 1/4 Shank Router Bit1
46380 Solid Carbide Up-Cut Ball Nose Spiral 1/2 Dia x 1-1/4 x 1/2 Inch Shank Router Bit1
46384 Solid Carbide Up-Cut Ball Nose Spiral 1/2 Dia x 2-1/8 x 1/2 Inch Shank Router Bit1
46202 Solid Carbide Spiral Plunge 1/4 Dia x 3/4 x 1/4 Inch Shank Down-Cut1
46102 Solid Carbide Spiral Plunge 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut1
51402 Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/4 Dia x 5/8 x 1/4 Inch Shank Up-Cut1
51411 Solid Carbide CNC Spiral 'O' Single Flute, Plastic Cutting 1/8 Dia x 1/2 x 1/4 Shank x 2 Inch Long Up-Cut Router Bit1
51417 Solid Carbide CNC Spiral 'O' Single Flute, Plastic Cutting 3/16 Dia x 5/8 x 1/4 Shank x 2 Inch Long Up-Cut Router Bit1
46270 Solid Carbide CNC Foam Cutting Up-Cut Square End Spiral 1/8 Dia x 1-1/8 x 1/4 Shank x 2-1/2 Inch Long Router Bit1
46272 Solid Carbide CNC Foam Up-Cut Cutting Square End Spiral 1/4 Dia x 2-1/4 x 1/4 Shank x 2-1/2 Inch Long Router Bit1
46424 Solid Carbide Up-Cut Spiral Ball Nose 3/32 Radius x 3/16 Dia x 1/2 x 1/4 Shank x 2-1/2 Inch Long x 2 Flute Router Bit1
46426 Solid Carbide Up-Cut Spiral Ball Nose 1/8 Radius x 1/4 Dia x 1/2 x 1/4 Shank x 2-1/2 Inch Long x 2 Flute Router Bit1
46280 CNC 2D and 3D Carving 6.2 Deg Tapered Angle Ball Tip x 1/32 Dia x 1/64 Radius x 1 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit1
46282 CNC 2D and 3D Carving 5.4 Deg Tapered Angle Ball Tip 1/16 Dia x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long x 4 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit1
46284 CNC 2D and 3D Carving 1 Deg Tapered Angle Ball Tip 1/8 Dia x 1/16 Radius x 1-1/2 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit1
46286 CNC 2D and 3D Carving 3.6 Deg Tapered Angle Ball Tip 1/8 Dia x 1/16 Radius x 1 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit1
46294 CNC 2D and 3D Carving 0.10 Deg Straight Angle Ball Tip 1/4 Dia x 1/8 Radius x 1-1/2 x 1/4 Shank x 3 Inch Long x 2 Flute Solid Carbide ZrN Coated Router Bit1
46292 CNC 2D and 3D Carving Flat Bottom 0.10 Deg Angle x 1/8 Dia x 1-3/32 x 1/4 Shank x 2-1/2 Inch Long x 4 Flute Solid Carbide ZrN Coated Router Bit1
51460 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 3-Flute x 1/8 Dia x 3/8 x 1/4 Shank x 1-1/2 Inch Long Up-Cut Router Bit / 45º Corner Chamfer End Mill1
46308 CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting 3/8 Dia x 1-1/4 x 3/8 Shank x 6-Flute1
51404 Solid Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut Router Bit1
51405 Solid Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/4 Dia x 1 Inch x 1/4 Shank Up-Cut Router Bit1
51410 Solid Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/8 Dia x 1/2 x 1/8 Shank Up-Cut Design Router Bit1
51504 Solid Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank Down-Cut1
RC-1075 CNC In-Groove Insert Engraving Tool Body 1/4 Inch Shank1
46306 CNC Solid Carbide ZrN Coated Honeycomb Cutting Hogger 1/4 Dia x 1-1/4 x 1/4 Shank x 4 Inch Long x 6-Flute1
47640 1/2 Inch Shank CNC Extension Adapter for 1/4 Inch Shank Router Bits1
46490 Extra Long CNC 2D and 3D Carving Ball Nose 0.10 Deg Straight Angle x 1/4 Dia x 1/8 Radius x 1/2 x 1/4 Shank x 3 Flute ZrN Coated Reduced Shank Router Bit1
46180 CNC Solid Carbide Compression Spiral 1/8 Dia x 13/16 x 1/8 Inch Shank1
51474 Solid Carbide CNC Spiral 'O' Single Flute, Aluminum Cutting 1/8 Dia x 1/4 x 1/4 Shank x 2 Inch Long Up-Cut Router Bit 1
51454 Solid Carbide CNC Spiral 'O' Single Flute, Aluminum Cutting 1/8 Dia x 1/2 x 1/4 Shank x 2 Inch Long Up-Cut Router Bit 1
51406 Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/8 Dia x 5/16 x 1/8 Shank Up-Cut1
51408 Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 3/16 Dia x 1/2 x 1/4 Inch Shank Up-Cut1
RC-1045 CNC Insert V-Groove 45 Deg x 7/8 x 1/2 Inch Shank1
RC-1108 Insert V-Groove 60 Deg x 29/32 x 1/2 Inch Shank CNC1
RC-1102 Insert V-Groove 90 Deg x 3/4 x 1/2 Inch Shank CNC1
51464 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 3-Flute x 1/4 Dia x 5/8 x 1/4 Shank x 2-3/8 Inch Long Up-Cut Router Bit / 45º Corner Chamfer End Mill1
51467 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 2-Flute x 3/8 Dia x 1/2 x 3/8 Shank x 3 Inch Long Up-Cut Router Bit / 45º Corner Chamfer End Mill1
RCK-360 Solid Carbide Insert 30 Deg x 0.005 Inch V Tip Width Engraving Knife for In-Groove System1
46094 Solid Carbide Up-Cut Spiral 1/4 Dia x 3/4 x 1/4 Shank x 2-1/2 Inch Long Composite, Fiberglass & Phenolic Cutting ZrN Coated Router Bit1
45792 Carbide Tipped Double Edge Folding V-Groove 90 Deg x 0.090 Inch Tip Width x 1/2 Dia x 3/8 x 1/4 Inch Shank1
45795 Carbide Tipped Double Edge Folding V-Groove 108 Deg x 0.090 Inch Tip Width x 3/8 x 1/2 Dia. x 1/4 Inch Shank1
45798 Carbide Tipped Double Edge Folding V-Groove 135 Deg x 0.080 Inch Tip Width x 3/4 Dia x 1/2 x 1/4 Inch Shank1
RC-2250 Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 2+2 Flute Design 1-1/2 Dia x 1/2 x 1/2 Inch Shank Router Bit1
